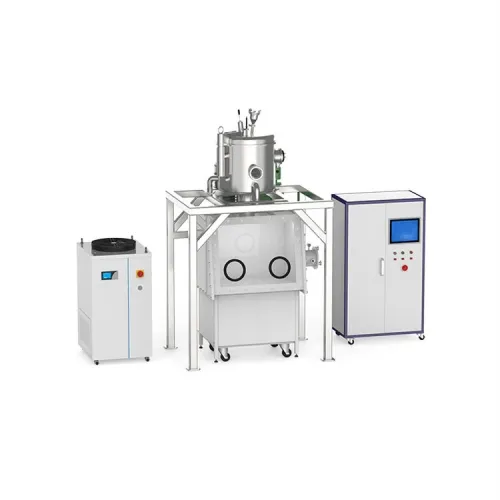

HS-IM600-40GB vacuum indium alloy melting furnace is mainly used for high temperature melting and purification of indium alloy, and realizes the function of oxygen-free environment packaging.
Product Features of vacuum indium alloy melting furnace:
1. Induction coil inductor structure, easy to operate, good power coordination, long life and not easy to deform.
2. Integrated product design, full packaging in an oxygen-free environment
3. Adopt the integrated design of distillation and smelting to realize the dual function of melting and distillation collection
4. Measure the crucible temperature at the bottom of the crucible in real time, and measure the surface temperature of the evaporation and collection surface at the top of the distillation.
5. High vacuum design of smelting furnace stainless steel.

Technical parameters of vacuum indium alloy melting furnace:

Crucible capacity	40kg (based on the specific gravity of indium alloy),
Max. working temperature	1200℃
Power supply capacity	120-150 Kw
Ultimate vacuum	≤ 5 Pa (after degassing)
Vacuum pressure rise rate	≤4.0 Pa/h
Overall dimensions	About 2500×3000×3000 (L×W×H)
IF frequency	1000~4000 Hz (automatic tracking)
IF voltage	375 V
Casting method	Bottom casting
Temperature measurement range	Room temperature-1200℃
Temperature measurement method	thermocouple or infrared, according to the needs of the actual part
Power supply type	IGBT intermediate frequency power supply
Melting environment	Vacuum or inert gas state.
Crucible size	Dia.180mm * 250
Packing method	Casting and packing in the glove box, oxygen-free state throughout the process
Glove box size	A. Single-station single-sided operation, size 1220750900mm B. Control mode: 7-inch touch screen C. Purification column: single column D. Fan 90m³/h E. Water index <1ppm F. Oxygen index <1ppm
