Rotary furnace/ Rotary kiln

This equipment is a rotary furnace, equipped with a large-size furnace tube with a diameter of 200mm, and is equipped with a feeding mechanism and a rotating mechanism to ensure continuous and uniform reaction.The laboratory rotary furnace is widely used in lithium battery materials (including lit
Products Inquiry

Product Details

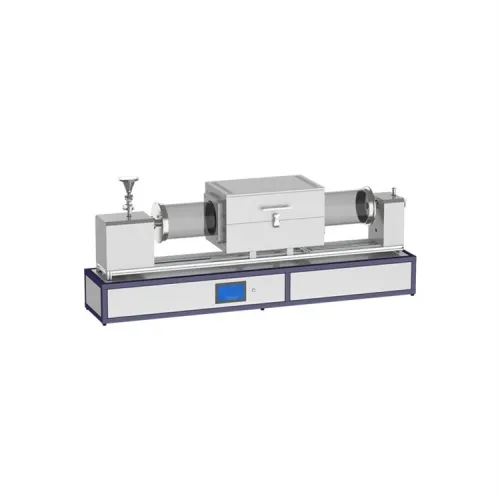

This equipment is a rotary furnace, equipped with a large-size furnace tube with a diameter of 200mm, and is equipped with a feeding mechanism and a rotating mechanism to ensure continuous and uniform reaction.
The laboratory rotary furnace is widely used in lithium battery materials (including lithium iron phosphate, lithium cobalt oxide, lithium manganese oxide, lithium nickel cobalt oxide, cobalt oxide, cobalt powder, nickel powder and other positive and negative electrode materials), rare earth Materials (rare earth oxides, luminescent powder, polishing powder), magnetic materials, kaolin mineral materials, glaze pigments, ceramic equipment, active refractory materials, catalyst materials (vanadium, vanadium tetroxide, vanadium iron, etc.) carbonization, metal powder calcination, etc.
It is suitable for experiments or small batch production in experimental testing institutions, universities and colleges, scientific research institutes, industrial and mining enterprises.

Technical parameters:
 Item Detail
 Model HS-SH40
 Power supply AC380V 50Hz 45kW
 Productivity 0-40kg/h
 Max. working temperature 500℃
 Furnace tube size φ200mm x 600mm
 Tilt angle 0~10° continuously adjustable
 Rotation speed 0~3.3rpm
 Dimensions 1800mm x 870mm x 1750mm
 Temperature control accuracy ±1℃
 Temperature control method AI-PID 30-segment process curve, with overheat and thermocouple failure protection
 Furnace tube material High purity quartz
Disclaimer: The product introduction content (including product images, product descriptions, technical parameters, etc.) of this site is for reference only. As the update may not be timely, there will be some differences between the content and the actual situation. Please contact our sales staff to confirm. The information provided on this site does not constitute any offer or promise, and the company will periodically improve and modify the website information, without prior notice, please understand.
