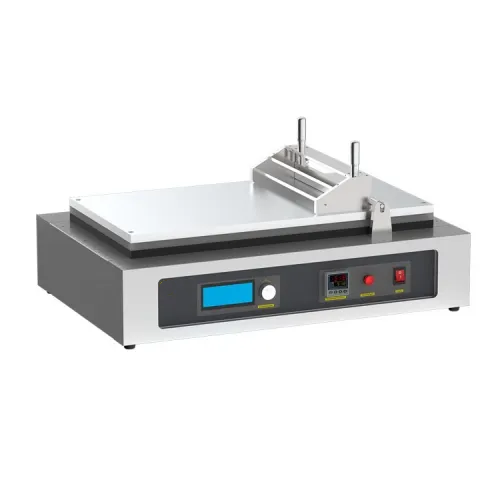

Automatic tape casting film coater with adjustable doctor-blade

Automatic tape casting film coaters is widely used in various coating research, such as ceramic film, crystal film, battery material film, special nano film.Main features of automatic tape casting film coater:1. The coating speed can be adjusted within the range of 0-100mm / S;2. Vacuum alumin

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Automatic tape casting film coaters is widely used in various coating research, such as ceramic film, crystal film, battery material film, special nano film.
Main features of automatic tape casting film coater:
1. The coating speed can be adjusted within the range of 0-100mm / S;
2. Vacuum aluminum disk, which can quickly place or remove the substrate;
3. The stroke can be adjusted by inductive proximity switch between 10-250mm;
4. Scraper with micrometer adjustable film applicator (accuracy 0.01mm), width 100mm;
5. Small size, saving space;
6. The appearance is exquisite, the sheet metal adopts the three-dimensional geometric design, simple and beautiful.

Technical parameters of automatic tape casting film coater：

Coating speed	0～100mm/s
Maximum stroke	300mm
Vacuum plate	aluminum plate with vacuum
Vacuum plate size	L415mm×W200mm×H30mm
Adjustable range of film applicator	0.01～3.5mm
Power supply	220V/50Hz
Weight	50KG
Dimension	L500mm×W310mm×H200mm
Optional accessories	Micron adjustable film applicator 50-150 mm wide, width can be specified according to requirements
