12" Precision Auto Lapping/ Polishing Machine for Preparing Metallographic Samples HS-GP-1202

Basic infoModel NO.: HS-GP-1202Structure: DesktopCertification: CE, ISOType: Polishing MachineTrademark: CYKYSpecification: polishing machineCustomized: Non-CustomizedMaterial: SteelApplication: School, LabPrecision Rotating Shaft: Running off < 5 MicronTransport Package: Woode

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Basic info
Model NO.: HS-GP-1202
Structure: Desktop
Certification: CE, ISO
Type: Polishing Machine
Trademark: HS
Specification: polishing machine
Customized: Non-Customized
Material: Steel
Application: School, Lab
Precision Rotating Shaft: Running off < 5 Micron
Transport Package: Wooden Case
Origin: China

Product Description

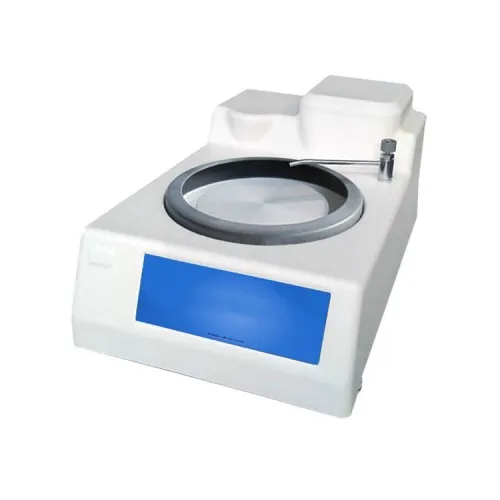

12" Precision Auto Lapping/ Polishing Machine for for preparing metallographic samples
Description of the 12" precision auto lapping / polishing machine:
This machine is equipped with 12" super flat lapping plate and can be used as a high precision lapping machine for polishing crystal components, semiconductor wafers, and ceramic substrates up to 4" in diameter. It can be used as a standard grinding and polishing machine for preparing metallographic samples as well.

Specification of the auto lapping / polishing machine:

Power	AC 110V and 208-240V (50/60Hz) switchable for worldwide operation.
Features	One cast iron plate for lapping and one cast aluminum plate for polishing. Two rocking workstations with wafer holders and condition rings, which can be controlled independently for polishing 2 pcs of 4" wafers at the same time. Complete accessories are included for immediate use
Super-Flat 12" (300 mm) Diameter Lapping Plate	Flatness < 0.25 micron="">
Precision Rotating Shaft	Running Off < 5 micron="">
Heavy Duty Cast Aluminum Case with Bright Painting	Color : Black or White
Two Work Stations with 8° Rocking and adjustable speed	8" rocking with 0- 9 rocking / minute adjustable
Two Flat Sample Holders for Carrying < 4" dia.="" wafer="">	105 Dia. x 35 T mm
Two Condition Rings	120 O.D. x 110 I.D. x 32 T mm
Variable Speed of Master Plate with Digital Display	0 ~ 150 rpm
Adjustable Timer for Auto-Stop	0 - 99 hours
Motor	300 W high torque DC motor
Dimensions	700 L x 475 W x 300 H (mm)
Weight	154 lbs
Dimensions of shipment	40"x30"x26"
Weight of shipment	220 Lbs
Optional Parts	Automatic Slurry Feeder 2" Polishing Fixture for Precision / Automatic Thinning and Polishing
Compliance	CE Certified
Warranty	One year limited with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty

standard package:

No.	Description	Qty
1	12" polyimide foam pad	1 pc
2	12" poromeric pad	1 pc
3	Power cord	1 pc
4	Sample holder	2 pcs
5	Wax	2 pcs
6	Condition ring	2 pcs
7	Hex wrench & screwdriver	1 set
8	Fuse(10A)	2 pcs
9	12" iron plate	1 pc
10	12" Aluminum plate	1 pc
11	Input tube & output tube	1 pair
