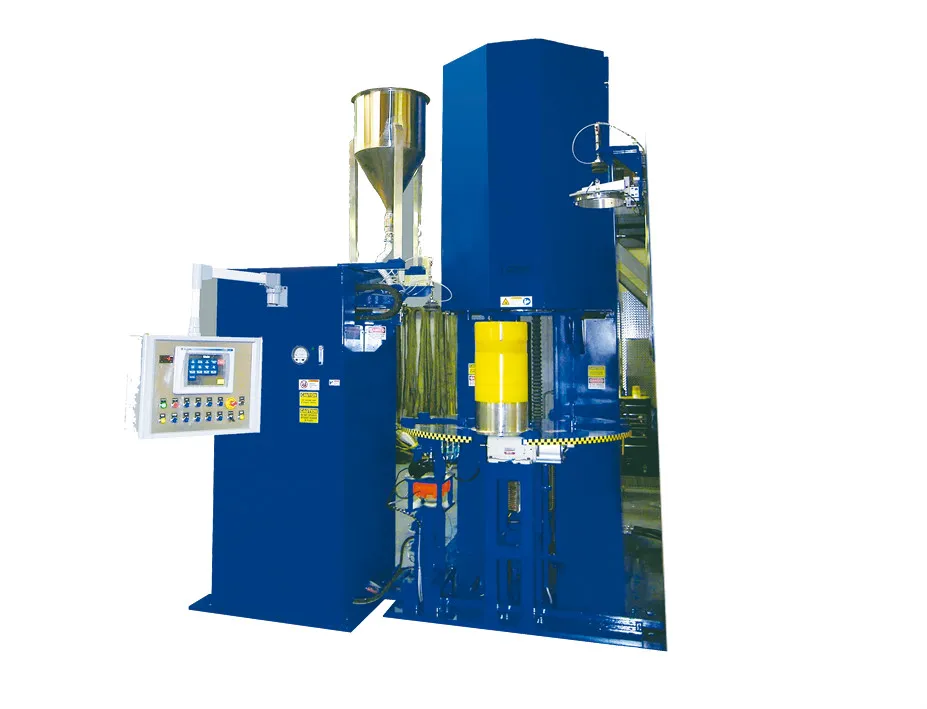

Standard dry bag isostatic press

DESCRIPTIONMolding of cemented carbide, ceramic (zirconia, alumina), magnetic materials, superhard materials, graphite, crystal, powder metallurgy, etc.Technical ParametersmodelTechnical ParametersDB-CIP-100MPaDB-CIP-150MPaDB-CIP-300MPa
Products Inquiry

Product Details

DESCRIPTION
Molding of cemented carbide, ceramic (zirconia, alumina), magnetic materials, superhard materials, graphite, crystal, powder metallurgy, etc.

Technical Parameters
 model Technical Parameters DB-CIP-100MPa DB-CIP-150MPa DB-CIP-300MPa
 1 Maximum charge length 490mm 490mm 1060mm
 2 Maximum charge diameter 125mm 80mm 200mm
 3 Maximum working pressure 100MPa 150MPa 300MPa
 4 One cycle time 4-15min 4-15min 4-15min
 5 Operation method automatic / manual automatic / manual automatic / manual
 6 power（AC380V) 8.5KW 13KW 25KW
 7 Floor area 2*1.8*2.3m 2.2*1.8*2.8m 3.5*3.2*3.5m
 8 server system Servo motor + servo oil pump
 9 Pressure control Adjustable buckling rate
 10 Target pressure value can be set
 11 Holding time: 0-999s
 12 Process data Set pressure value, dwell time: can be displayed
 13 Real-time pressure value, remaining dwell time: displayable
 14 Pressure curve of time work cycle: display, storage, traceability
 15 Production process parameters: can store multiple groups

Technical Characteristics
1) Developed a fully automatic loading and unloading system with a 24-hour automatic pressing cycle;
2) mold turntable stepping - feeding, pressing, demoulding and changing mold / cleaning; 4-6 mold steel;
3) Typical cycle time 20-150 seconds (depending on press size);
4) Provide technical assistance in mold design or process development;
5) Self-programming for curve pressurization, program pressure relief, and maximum removal of residual gas in the product according to customer's process requirements;
6) Programmatic production process control to avoid product quality defects caused by manual operation;
7) After pressing and forming, it can be sintered immediately on the same day to avoid long drying time of continuous extrusion products and greatly shorten the delivery time.
