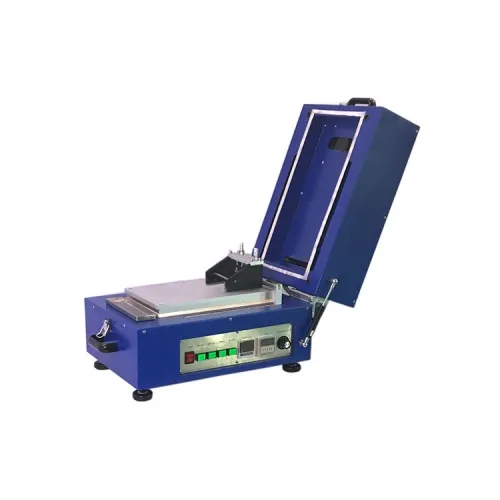

Auto-drying tape casting film coater

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Auto-drying tape casting film coaters is is widely used in various high-temperature film research, such as ceramic film, crystal film, battery material film, special nano film; it can adapt to the development of film science and technology in the future under high-temperature conditions.
Main features of auto-drying tape casting film coater:
1. The coating speed can be adjusted within the range of 0-100mm / S;
2. Drying system with digital display temperature control, the maximum working temperature is 200 ℃;
3. The stroke can be adjusted by the stroke switch between 10-250mm;
4. Vacuum aluminum disk, which can quickly place or remove the substrate;
5. With adjustable film applicator;

Technical parameters of auto-drying tape casting film coater:

Coating speed	0～100mm/s
Maximum stroke	250mm
Vacuum plate	aluminum plate with vacuum
Vacuum plate size	365mm(L)×200mm(W)×30mm(H)
Adjustable range of film applicator	0.02～3.5mm
Heating and drying system	room temperature ~ 200 ℃, digital temperature controller, accuracy ± 1 ℃
Power supply	220V/50Hz
Weight	50KG
Dimension	500mm(L)×310mm(W)×330mm(H)
Optional accessories	Micron adjustable film applicator 50-150 mm wide, width can be specified according to requirements
