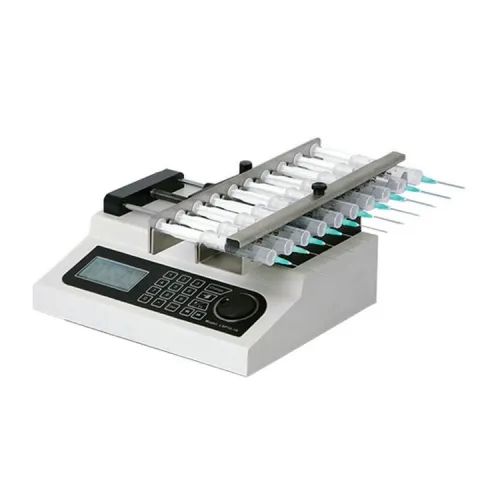

High precision 10-channel micro laboratory syringe pump

High precision 10-channel micro laboratory syringe pump main features:1. Syringe inner diameter input function: You can add a syringe from the list or enter the syringe ID directly.2. The human-machine interface of the micro-injection pump is friendly: the large screen LCD display, The digital k

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

High precision 10-channel micro laboratory syringe pump main features:
1. Syringe inner diameter input function: You can add a syringe from the list or enter the syringe ID directly.
2. The human-machine interface of the micro-injection pump is friendly: the large screen LCD display, The digital knob is used in conjunction with the membrane button for quick and easy operation.
3. Four working modes: perfusion mode, extraction mode, extraction perfusion mode, continuous mode.
4. Memory function:
(1)The EEPROM saves the setup parameters and does not need to be reset after power-on.
(2)When the operation is running in the flow mode, the power is turned off. After the power is restored, the parameters can be continuously run or stopped according to the set parameters.
5. Protection function: When the propulsion mechanism of the syringe pump is blocked during the work, the syringe pump will stop the work of the propulsion mechanism and emit a whistle alarm.
6. It can be connected to the host computer by 485 communication bus and controlled by the background software.
7. External control interface: with access to / output control.
Calibration function: More accurate flow is obtained through the calibration procedure.
Syringe protection function: The syringe can be prevented from being damaged by adjusting the position of the limit block.

High precision 10-channel micro laboratory syringe pump technical parameters:

Working mode	perfusion
Flow range	0.831ul / min a 21.675ml/min
Number of syringes	10
Maximum stroke	140mm
Stroke resolution	0.156μm
Line speed range	5μm/min-130mm/min (flow rate = line speed × syringe area)
Line speed adjustment resolution	5μm/min
Stroke control accuracy	Error≤±0.5% (stroke ≥ 30% of the maximum stroke)
Rated linear thrust	>180N
Syringe selection	Built-in main manufacturer’s main model syringes for selection
Syringe definition	You may directly enter the inner diameter of the syringe
Flow correction	Get a more accurate volume through the calibration procedure
Operating parameter settings	Dispensing liquid volume, injection time, etc.
Display parameter selection	Fluid volume, flow rate, or linear velocity
Power-down memory	After power-on, you can choose whether to continue working according to the state before power off.
Status signal output	2-channel OC gate signal output for indicating start/stop and direction status
Control signal input	2 channel start/stop control input, 1 channel falling edge trigger signal control start and stop; 1 channel TTL level signal control start and stop
Communication Interface	RS485
Dimensions	280×210×140(mm)
weight	4.5kg
Power supply	AC 200V-260V/35W
Working environment relative humidity	＜80%
Working temperature	0℃- 40℃
