Multi Purpose Precision 8" Polishing Machine / Manual Grinder, or Automatic Lapping / Polishing Machine EQ-Unipol-810

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Basic Info
Model NO.: HS-EQ-Unipol-810
Structure: Desktop
Certification: CE
Type: Polishing Machine
Product Name: Automatic Lapping Machine
Transport Package: Wooden Case
Origin: China
Customized: Non-Customized
Material: Steel
Application: School, Lab
Variable Speed: 0 - 600 Rpm
Trademark: HS
Specification: 8" Polishing Machine

Product Description

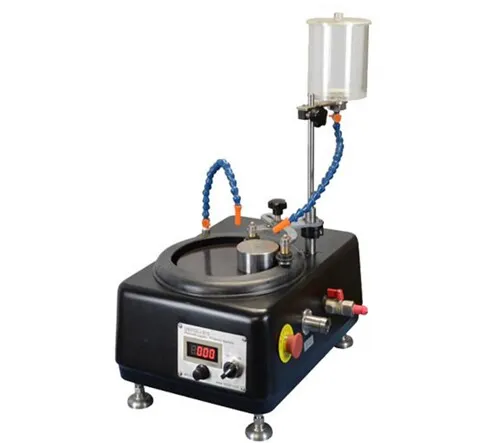

Multi Purpose Precision 8" Polishing Machine with York Support / manual grinder, or automatic lapping / polishing machine
Description of the 8" polishing machine / manual grinder / automatic polishing machine:
HS-UNIPOL 810 polishing machine is equipped with 8" super flat Aluminum lapping plate and one work sample support, as well as complete diamond lapping accessories. It can be used as a standard manual grinder, or automatic lapping / polishing machine for both flat sample and metallographic samples. It is the most cost effective solution for a material research lab.

Specification of the polishing machine:

Power	AC 110V and 208-240V (50/60Hz) switchable for worldwide operation.
Motor	0.25 KW high torque DC motor
Features	Heavy duty cast aluminum case with beautiful painting surface. Belt drive with high torque and quiet operation. dia Super flat lapping plate. Condition ring with one 75 mm dia flat sample holder for lapping polishing flat component. dia. flat sample holder for polishing flat sample. 75 mm dia. sample holder with three holes to allow polishing three metallographic samples up to 1" dia. at one time, which is available as optional. York supporter to allow polishing automatically.
Variable speed	0 - 600 RPM
Dimensions	525 L x 350 W X325 H (mm)
Aprox. net weight	30 Kg
Package dimensions	40" x 34" x 32"
Accessories	Two 8" PSA Diamond Lapping plates with 320 mesh and 600 mesh separately for fast lapping/grinding. PSA polishing pads for final polishing. 10g 0.5 micron diamond paste for faster polishing.
Optional	3" Sample Holder with 3 Holes 1" diameter round mount and two weights 2" Polishing Fixture for Precision / Automatic Thinning and Polishing is available ( pic left-2 ) Accessory equipment (slurry feeder, carrier/chuck, thickness meter, weights, etc) Consumables for polishing/lapping/grinding (sand paper, pad, plate, slurry, molding, coolant, etc)
Compliance	CE Certified
Shipping weight	63 kg (140lbs )
Warranty	One year limited with lifetime support
