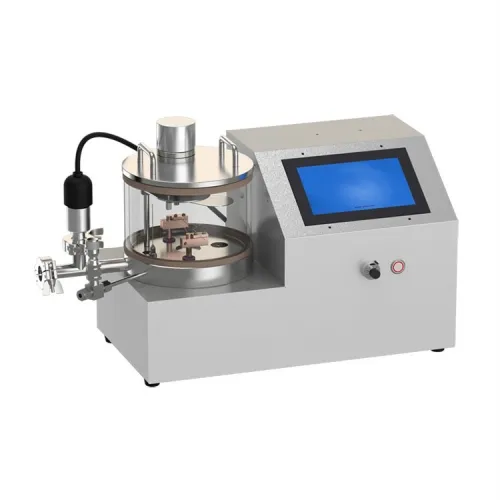

This small thermal evaporator can be used for vacuum evaporation deposition coating and the coating current can reach up to 100A. This type of small evaporation coating instrument has a wide range of applications and can prepare various metal thin films and some non-metal thin films, so it is widely used in electrodes and organic light emitting LED preparation. The instrument has a small size and a miniaturized design, which can effectively save laboratory space. It is specially designed for use in a glove box; it is simple to operate and has strong adaptability to different materials, making it very suitable for laboratory purchases.
Features of thermal evaporation coating machine:
1. Quartz chamber, easy to clean and put in samples;
2. Tungsten wire basket or tungsten boat is the heating source, the highest temperature can reach 1700℃;
3. Inert gas can be introduced into the vacuum chamber to clean the chamber, or reactive gas can be introduced to perform reactive evaporation coating.
4. The air inlet is equipped with a needle valve to adjust the air flow.

Technical parameter:

Item	Detail
Supply voltage	AC220V，60Hz
Max. power	1000W
Sample stage	Diameterφ60mm
Quartz chamber	O.Dφ180mm x I.Dφ166mm x 100mm
Evaporation source	Tungsten basket/tungsten boat
Max temperature	1700℃
Thermocouple	B-type, working temperature 200℃~1500℃
Vacuum gauge	Resistance type vacuum gauge
Vacuum interface	KF16
Inlet interface	φ6.35mm Bite type fittings
Vacuum pump	No, the customer provides it
Dimensions	330x250x580mm
