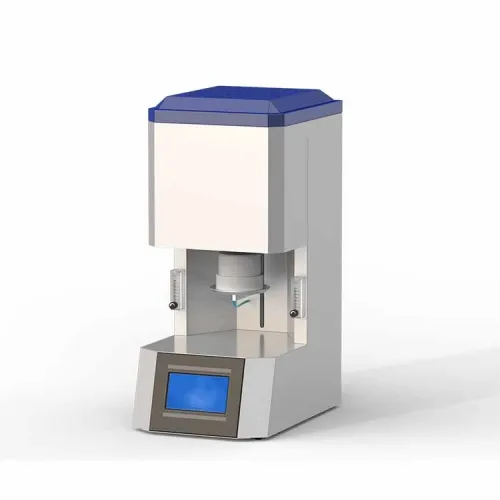

Soft metal sintering furnace

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Cobalt-chromium alloy, commonly known as soft metal, is widely used in the medical field because of its excellent biocompatibility and non-toxicity. However, because the forming and sintering process of cobalt-chromium alloy is a major difficulty in processing, this greatly restricts the promotion of this alloy material in the denture industry and restricts the development of the industry. After two and a half years of technical research, our company successfully developed the first “cobalt-chromium alloy dental sintering furnace” that can be used in production. The soft metal sintering furnace provides precise high-temperature sintering process for cobalt-chromium alloy dentures. The intelligent temperature control system can store multiple sintering curves, the main control chip can intelligently control the gas inlet and change; all operations can be done on the touch screen, the operation is simple and intuitive. Our soft metal sintering furnace will be your best choice for the production of cobalt-chromium dentures.
Scope of application: soft metal (cobalt chrome) dental crown sintering

Soft metal sintering furnace technical parameters:

Model	HS-A1400-ZQ
Chamber structure	Lifting type, lift mechanism mute processing
Chamber size	φ100×150mm
Chamber volume	1.2L
Chamber material	Imported alumina fiber
Operating mode	HD full color LCD touch screen
Working temperature	0～1400℃
Heating rate	≤60℃/min
Heating zone	Single heating zone
Temperature accuracy	±1℃
Temperature control	30 Steps programmable and PID automatic control
Temperature measuring element	S-type thermal couple
Gas	Pure air and inert gas, program automatically controls switching
Gas interface	1/4" ferrule connector (Ø8 pagoda-shape connector)
Power supply	AC: 220V 50/60Hz
