Single-sided double-station laboratory vacuum glove box

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

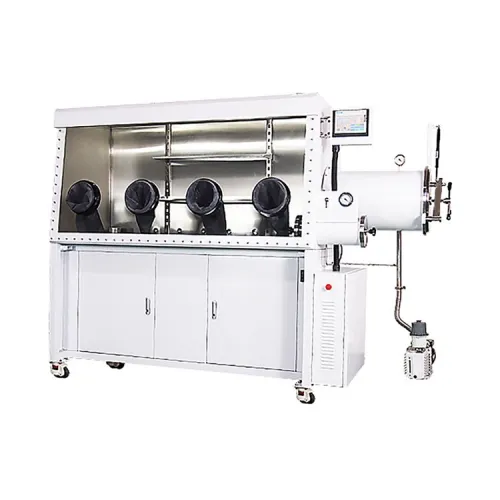

Glove box is a device that provides a water-free and oxygen-free environment. It is mainly composed of display system, transition chamber, vacuum system, control system, box chamber, circulation purification and regeneration system, etc. it can also be integrated with gas purification system, solvent filtration system and water oxygen display system.The box is beautiful and novel, and the performance is stable. It is made of high-quality steel plate or mirror stainless steel argon arc welding, and double-layer tempered glass.

Main features of glove box:
1. Automatic function to control air pressure, detection, purification and reduction
2. Touch screen: color Chinese and English operation interface, easy to access various functions, realize man-machine dialogue
3. Circulation: closed loop gas circulation, no oil and vacuum
4. Air pressure control: automatic control, working air pressure can be set in the range of + / - 12mbar
5. Box cleaning: automatic control, easy to operate, gas saving, solvent safe for operation
6. Foot switch: the air pressure in the box can be adjusted by foot switch
7. International well-known brand components
8. Superior sealing performance and easy replacement
9. Data memo:automatically record system data

Technical parameter of glove box:

Box chamber	Dimension	1200mm (L) x 770mm (H) x 900mm (W)
	Material	304 stainless steel :thickness 3mm
	Window	Inclined design operation surface, 8mm thick, removable toughened glass window
	Gloves	0.4mm thickness, North butyl, glove mouth:8-inch
	Working pressure	-12mbar ～ 12mbar
	Pressure switch	German Haswasser pressure sensor
	Lighting	LED
	Storage rack	2 layers
	Bracket	920mm (H), with swivel castors and stainless steel horizontal support
	Joint	KF40 interface
	Power supply	220V ± 10% 50Hz ± 10% (Porous glue filling patch panel)
	Filter	HEPA standard, filtration accuracy 0.3 μ M
	Leakage rate	< 0.05vol% / h
	Automatic cleaning	With automatic cleaning function, the box can quickly replace the atmosphere
Transition chamber	Dimensions:	Large chamber: Φ 390mm * 600mm, 3mm thick, SUS304, piston door. Small chamber: Φ 150 mm * 300 mm, 3 mm thick, SUS304
	Position	On the right side, there is a large and small transition cabin, On the left side,There is a small transition cabin
	Tray	Large chamber: sliding SUS304 tray.300 mm * 450 mm Small chamber:semi-circular SUS304 tray. The hatch cover adopts lever lock compression type, which is easy to open and close and has excellent sealing performance
	Operation	Large chamber: manual opening and losing, with automatic air extraction and replenishment function, controlled by touch screen. Small chamber:manual opening and closing, manual operation of three-way ball valve for air extraction and replenishment
	Vacuum	≤－0.1MPa, digital display, German WIKA earthquake-resistant vacuum pressure gauge
