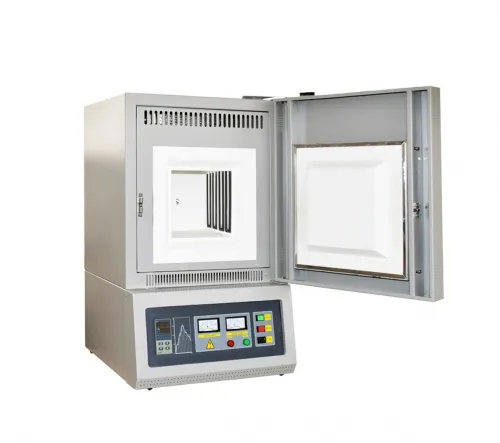

Laboratory 1400℃ High Temperature Muffle Furnace with SiC heating rod-HS-M1400-8L

Features1. LCD touch screen with PID Programmable control2. CE certified, quality warranty3. High quality alumina fiber, good heat preservation effect4. 30 steps Programmable and SCR accuracy temperature control5. Clear heating element, no color greening changing6. Low power, energy cons

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Features
1. LCD touch screen with PID Programmable control
2. CE certified, quality warranty
3. High quality alumina fiber, good heat preservation effect
4. 30 steps Programmable and SCR accuracy temperature control
5. Clear heating element, no color greening changing
6. Low power, energy conservation and environmental protection

Technical parameters

Model	HS-M1400-8L
Chamber model	Side Door
Display	7” LCD Touch Panel
Limiting temperature	1400℃
Working temperature	Working temperature
Heating rate	Suggestion 0~20℃/min
Temperature accuracy	±1℃
Inside chamber size	200200200(mm)
Heating element	High Purity SiC
Thermal couple	S Type
Temperature control	PID automatic control via SCR power control
Heating curves	30 steps programmable
Chamber material	Alumina Fiber
Rated power	4.5 KW
Working voltage	AC 220V, 50-60Hz
Packing	PLY wood box
Accessories	glove 1pair, crucible tongs 1pc, manual book
