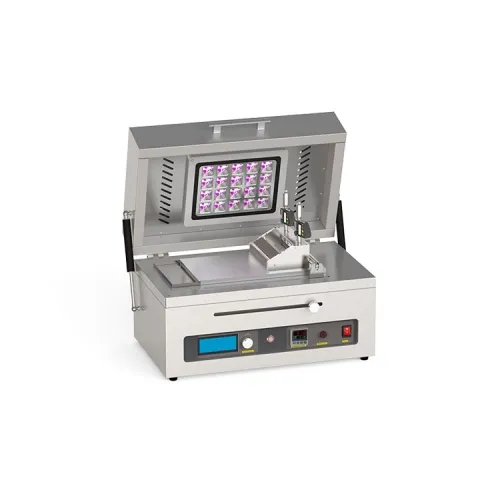

Small tape casting coater with top UV and bottom heating

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

This product is widely used in various high-temperature coating films, such as ceramic films, crystal films, battery material films, and special nano-films; it can adapt to the future development of film-forming science and technology under high temperature conditions.
Main features of small film coater:
1. Drying system with strong wind heating and digital display temperature control, the maximum working temperature is 200C;
2. The coating film speed is adjustable in the range of 0~100mm/sec, and has digital display;
3. Vacuum aluminum plate, can quickly place or remove the substrate;
4. The stroke can be adjusted by the travel switch between 10~250mm;
5. With a doctor blade that adjusts the thickness of the coating film (accuracy 0.02mm) width 0-150mm;

Technical parameters of small film coater:

Product name	Small heating type film coater
Product model	HS- AFC360-HTUV
heating	Top UV (WL: 365nm) bottom heating, 120ºC
Coating speed	0-100mm/s adjustable Accuracy: 10mm/s
Coating stroke	10-250mm adjustable
Vacuum aluminum plate	360mm×200mm (L×W)
Vacuum pump	Oil-free vacuum pump
Film applicator	100mm micron adjustable, adjustable range 0.01mm-3.5mm Including stroke pusher and waste plate, used to push the film maker
Voltage	220V 50HZ
