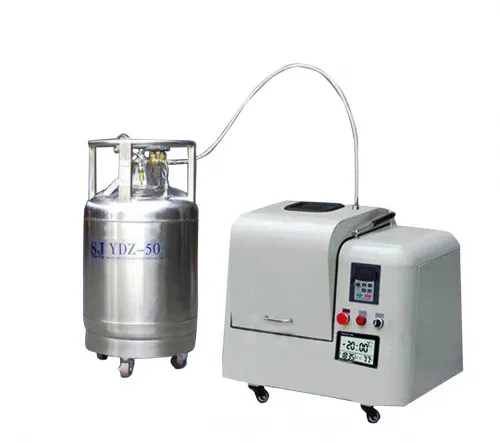

Low Temperature Liquid Nitrogen Cryogenic Mill

Features1.Temperature is adjustable and controllable2.Large capacity: total 2L, four different tanks, one time mill,can get different sample size3.Ultra pure crucible, To avoid powder secondary pollutionItem NameCryogenic millModel No.HS-YDQM-2L

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Features
1.Temperature is adjustable and controllable
2.Large capacity: total 2L, four different tanks, one time mill,can get different sample size
3.Ultra pure crucible, To avoid powder secondary pollution

Item Name	Cryogenic mill
Model No.	HS-YDQM-2L
Capacity	2L
Tank	Zirconia or agate crucible 4 pieces
Maximum loading of each tank	3/4 of the tank capacity, 500ml
Feeding granularity	Crispy material< 10mm, others < 3mm
Discharging size	0.1um
Rate Speed	Revolution:290rpm;rotation:530rpm
Speed adjust	Frequency control
Driving method	Gear drive
Control	Programmable control
Ball mill tank temperature	-40℃~20℃
Gas consumption	4-5L/hour
Dimension	750480520mm
Gross weight	125kg
