Double heating zone tube furnace with magnetic push rod

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

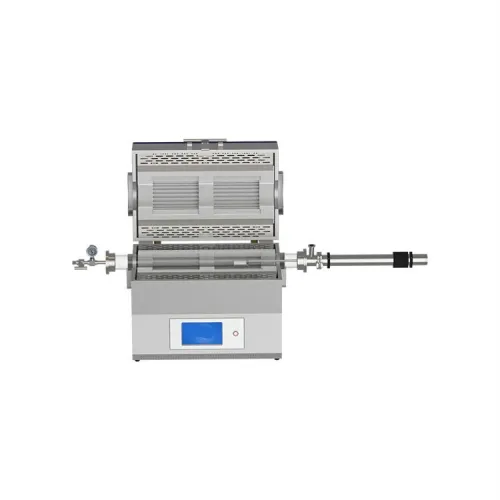

The dual-temperature zone tube furnace is equipped with a magnetic push rod, which has an exquisite structure and high reliability, and can perform displacement operation on the sample in the tube while keeping the furnace tube vacuum tight. Combined with separate temperature control in dual temperature zones, it can realize a variety of heat treatment processes for users and is an ideal equipment for material research and material processing.

Technical parameters of tube furnace:

Item	Details
Supply voltage	AC220V, 50Hz
Maximum power	4KW
Heating rate	Maximum 20℃/min, recommended ≤10℃/min
Operating temperature	Maximum temperature≤1200℃; continuous working temperature≤1150℃
Heating temperature zone	Dual temperature zone 200mm+200mm
Furnace tube parameters	Length 1000mm O.D 60mm I.D 57mm
Temperature control accuracy	PID temperature control accuracy ±1℃
Thermocouple	K type thermocouple
Temperature control method	Separate temperature control in dual temperature zones AI-PID 30-segment process curve, can store multiple With overheating and thermocouple failure protection
Furnace chamber material	High purity alumina furnace chamber
Vacuum interface	KF16
Air inlet	6.35 Ferrule connector
Magnetic push rod	Moveable length 500mm Can shift samples in two temperature zones To meet customer's heat treatment process Using magnetic coupling connection, Can ensure the vacuum of the furnace tube while pushing the sample
Dimensions	1300mm x 420mm x 550mm
