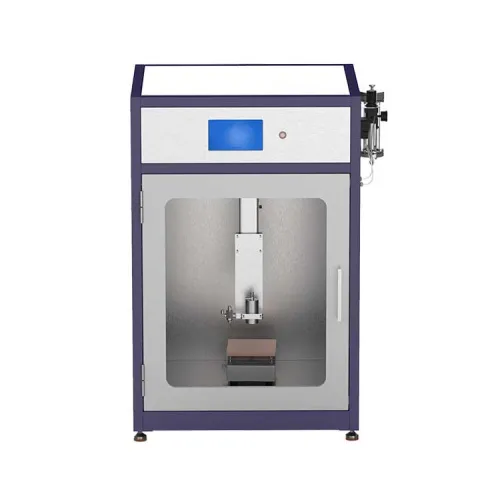

Spray pyrolysis film preparation method is to atomize the solution and spray it onto a heated substrate, and then obtain a desired material structure on the substrate. This equipment is an ultrasonic spray pyrolysis equipment independently developed by our company. It is equipped with 40KHz 130W ultrasonic sprayer, PID temperature-controlled substrate heater plate, high precision peristaltic pump and precision programmable stepping motor moving mechanism. The integrated design of the device can accurately control the parameters such as the amount of solution, the speed of the spray particles and the size of the spray particles, and the substrate temperature can also be controlled to meet your various experimental needs.

Application range of Ultrasonic Spray Pyrolysis Coating Unit:

This material preparation method is particularly suitable for the deposition of oxides and has a long history of application in the preparation of transparent electrodes. This method is now widely used in the preparation of perovskite solar cells.

Technical parameters of Ultrasonic Spray Pyrolysis Coating Unit:

Item	Detail
Model	HS-USP130-B
Supply voltage	AC220V, 50Hz
Max power	3.5KW (including compressor + peristaltic pump 1.5KW)
Ultrasonic sprayer	40KHz 130W
Liquid viscosity	1-50mPa·s (cP)
Nozzle stroke	X-Y-Z axis up to 190mm
Moving speed	10-180mm/s (x-axis direction) 10-180mm/s (Y-axis direction)
Substrate heater plate	150mm×150mm
Max temperature	500℃
Temperature control method	AI-PID temperature control
dispensing tank capacity	50mL / 250mL (two containers included)
Peristaltic pump dispensing rate	0.006-41mL/min
Control method	Industrial computer + instrument panel
Overall size	850mm×850mm×1450mm
