Product Details

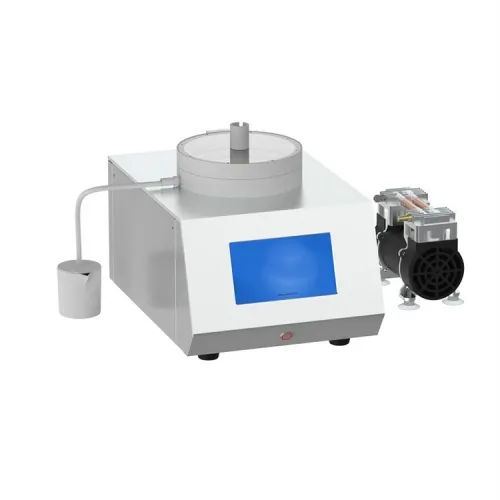

This product is a spin coater, also known as the spin processor, which uses centrifugal force generated by high-speed rotation to coat film materials. This model adopts a special design, so that the substrate can be heated simultaneously during the spin coating process. The maximum heating temperature is 200℃, which can meet the temperature requirements of some solutions in the spin coating process. At the same time, the equipment is also equipped with a liquid drain pipe and a waste tank to facilitate customers to collect waste liquid and effectively prevent corrosive liquid from splashing into the environment.

Technical parameters:

Power supply	AC220V, 50Hz
Chamber material	PTFE
Upper cover	PVC (Polyvinyl chloride, for observing the coating state conveniently)
Sample stage	Gold-plated copper plate, with good thermal conductivity
Substrate size	Diameter ≤ 4 inches (100mm)
Heating mode	Ceramic heating ring
Operating temperature	RT-200℃
Rotation speed	0-3000rpm
Speed resolution	1rpm
Operation Mode	7 inch HD LCD touch screen
Glue dropping mode	Manual glue dispensing, liquid can be supplied during spin coating
Liquid drain pipe and waste liquid tank	PTFE
Spin coating curve	Each curve has 5 segments, a total of 5 curves can be stored
Vacuum chuck	Gold-plated, 3 pieces with diameters of 10mm, 25mm, 55mm
vacuum pump	Oil-less pump
Pumping speed	50 L/min
