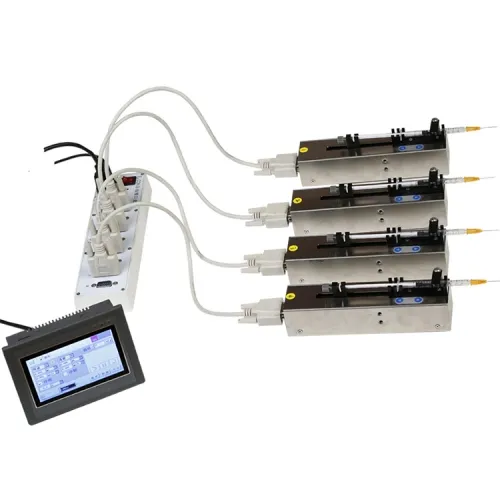

Multi-channel laboratory micro syringe pump

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Multi-channel laboratory micro syringe pump is widely used in biology and chemistry reaction injection experiments, long-term animal drug injection experiments, electrospinning, microfluidic applications and other laboratory microinjection experiments, etc., through the mechanical device to promote the syringe, to achieve high-precision, smooth liquid transmission.
Multi-channel laboratory micro syringe pump main features:
1. Intuitive and easy to use: It adopts 4.3-inch colorful LCD screen with touch function, which is intuitive and easy to operate.
2. Computer control: can connect the device to the computer through the USB一RS485 communication line, and control it through the background software;(optional)
3. Multi-channel independence: select the split type, multi-channel independent control of the syringe pump, one controller (touch screen or computer) can complete any combination of multiple channels;
4. Clean and no worries: connect wireless mouse remote control work, so that the syringe pump has no hidden troubles to operate in a ultra-clean working table and other closed environment;
5. multi-factory mode: the program collects more than 95% of the common syringe models in the market, and can automatically remember the newly input syringe;
6. DIY function: provide the underlying dynamic library and programming interface, the user can carry out secondary development in the personal computer through C#, C++, VB and other programming languages;
7. Accurate calibration: the program comes with a flow calibration function to eliminate the volume error caused by long-term work;
8. Protection setting: protect the syringe from being damaged by setting the left and right limit positions;
9. Memory function: The system automatically saves the current operating parameters, and can start working directly after power-on.

Multi-channel laboratory micro syringe pump specifications:

Number of Channels	1~8
Infusion volume per microstep	0.000313Ul(100uLSyringe)
Applicable syringe type	0.5uL－1mL
Advance per microstep	0.156um
Flow range	0.1uL/h-30mL/min
Max. line speed	79.4mm/s
Min. line speed	7.9um/min
Maximun pace	6933 Step/s
Minimum pace	0.02533 Step/s
Woking mode	Single push mode, push-pull mode
Linear force	>20Kgf
Control accuracy	Control error <=0.1%, when the stroke is more than 30% of the full stroke
Control and display	4.3 inch LCD colorful touch screen
Voltage range	DC18V-DC36V
Working environment	temperature 5-40℃, relative humidity <80%
Mainframe dimensions	1784454(mm)
Touch screen dimensions	1188634(mm)
Weight	0.69kg
