Product Details

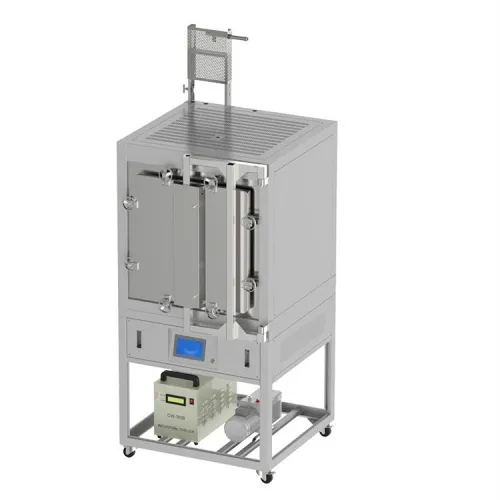

This product is a box-type furnace with a hydrogen atmosphere at 1200°C. The furnace chamber is a closed design, which can be vacuumed and filled with hydrogen and other gases. The furnace is a double-layer stainless steel structure, which guarantees vacuum and safety to the utmost extent, ensures that the positive pressure can reach 0.06MP, and the vacuum can reach -0.09MPa; the overall water cooling is cooled, and the shell temperature does not exceed 50℃ during heating to ensure safe operation. Built-in H2 combustion control system, that is, when the controller does not detect the flame in the burner, the gas delivery valve will automatically close. The furnace uses five-sided heating, and the temperature distribution in the furnace is the most even.

This box furnace contains a temperature controller, which can realize proportional integral differential control and automatic adjustment functions. The temperature control accuracy is ±1℃, and it has built-in over-temperature alarm and thermocouple failure alarm.

Technical parameters:

Item	Detail
Product model	HS-M1200H-64IT
Supply voltage	AC220V, 50Hz
Total power	10KW
Operating temperature	≤1200℃
Heating rate	Suggest 10℃/min
Thermocouple type	B type thermocouple
Furnace size	400x400x400mm, 64Liter
Maximum sample load	35kg
Constant temperature zone	±1℃ in the center 250mm 3 area; ±5℃ in the center 300mm 3 area
temperature control	1) PID automatic control of heating rate, cooling rate and holding time 2) PID control over temperature protection and short couple protection 3) It has over-temperature protection alarm function, so the equipment can run unattended 4) The temperature accuracy is ±1℃ (the difference between the displayed temperature and the actual temperature)
Heating element	1300℃ imported heating wire
Water chiller	16L/min circulating water chiller
