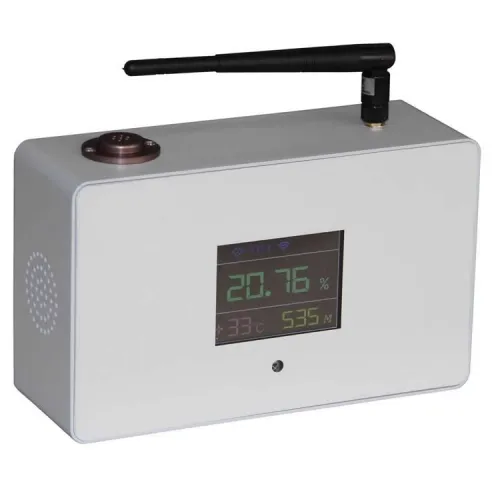

Wall-mounted oxygen monitor

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Wall-mounted oxygen monitor has a friendly man-machine dialogue menu, which is intuitive and convenient to operate. The sensor is not powered, does not consume, has a long service life and is easy to maintain. Compared with the principle of electrochemistry and ultrasonic, the service life is long and the response speed is fast. Oxygen outlet is equipped with a silencer, low noise, to meets the noise requirements of sleep. The calibration interval is long, high precision, stable and reliable.
Wall-mounted oxygen monitor main features:
1) While monitoring environmental oxygen changes, the adjustment of the ambient oxygen concentration is realized to achieve the best adaptation of the human body;
2) With wireless transmission function, it can be remotely controlled for centralized management;
3) With remote control function, easy to operate;
4) no reference gas is required, and is not affected by the working environment oxygen concentration;
5) High-precision temperature automatic compensation system can eliminate the influence of ambient temperature;
6) Modular design, users can freely add features.

Wall-mounted oxygen monitor main features:

Measuring principle	ion current
Display mode	320×240 graphic dot matrix color LCD
Measuring range	0 ~ 40.0% O₂
Measurement accuracy	≤ ± 1% FS
Repeatability	≤±1%
Response time	T₉₀≤ 30S
Analog output	4-20mA.DC (non-isolated output, load resistance less than 500 ohms) 1 way programmable dry contact passive alarm output, contact maximum capacity 220VAC/2A 1 way RS485
Power supply	AC220V ± 10%
Sample gas temperature	-10 ~ +50℃
Ambient humidity	<80% RH
Sampling method	free diffusion
Oxygen pressure	≤1MPa
Dimensions	150mm × 206mm × 70mm (H × W × D)
Service life	≥5 years (under normal use conditions)
Installation method	wall-mounted
