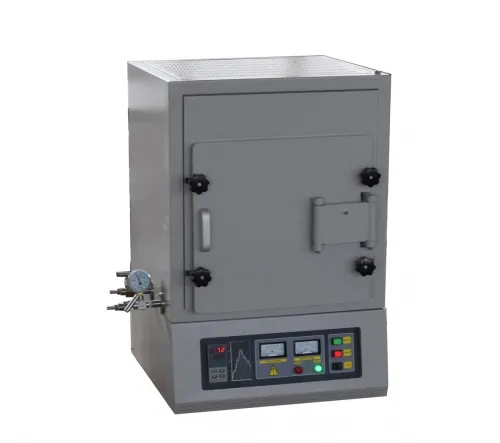

Compact 1600℃ atmosphere muffle furnace with water cooling system HS-A1600-3IC

Features1.Swing door, easy to operate2.High quality imported fiber, resistance high temperature3.Programmable and PID automatic control4.Heavy duty double layer structure with cooling fan. Lower temperature in outside case5.Multi-function: Metal annealing, quenching atmosphere, surfa

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Features
1.Swing door, easy to operate
2.High quality imported fiber, resistance high temperature
3.Programmable and PID automatic control
4.Heavy duty double layer structure with cooling fan. Lower temperature in outside case
5.Multi-function: Metal annealing, quenching atmosphere, surface cream, light treatment
6.Compact structure, can insert N2/Ar2 for special material sintering.

Model	CY-A1600-3IC
Controller	LED/LCD for optional
Chamber Dimension	150150150mm
Maximum Temperature	1650℃
Rated Temperature	1500℃
Heating Rate	0-20℃ (suggestion 10℃/min)
Temperature Control	30 programmable and PID automatic control
Temperature uniform	± 5℃
Heating Element	MoSi2
Thermocouple	B type
Furnace Shell Structure	Double furnace shell and is equipped with cooling fan
Water cooling capacity	50w/ ℃
Tank capacity	9L
Cooling water speed	15L/min
Atmosphere acceptable	nitrogen, argon and other inert gases
Voltage	AC 220 -380V,50/60Hz, as customized
Quality Guarantee	One year
