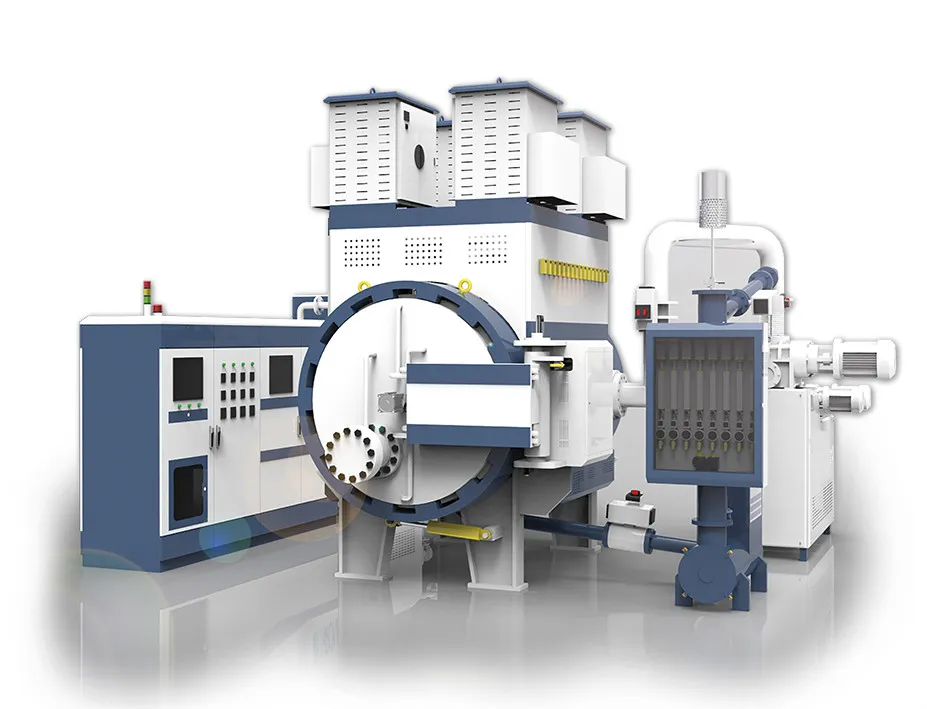

Silicon nitride gas pressure sintering furnace

DESCRIPTIONSpecially used in degreasing, partial pressure sintering, high temperature pressure sintering of ceramic products such as silicon nitride; suitable for degreasing treatment of adhesives such as PEG; It has two kinds of horizontal and vertical structures for customers to choose.Techn
Products Inquiry

Product Details

DESCRIPTION
Specially used in degreasing, partial pressure sintering, high temperature pressure sintering of ceramic products such as silicon nitride; suitable for degreasing treatment of adhesives such as PEG; It has two kinds of horizontal and vertical structures for customers to choose.

Technical Parameters
 model Effective space design pressure Furnace weight Maximum temperature Vacuum limit Vacuum limit Cooling time Temperature uniformity power （KW) Temperature control method Gas Floor area （m)
 SIP410 Ø410*800 6/10MPa 200KG 2000℃ 0.5Pa 5Pa/h ≤4H ±7℃ 60 一区 Ar
N2
H2
CH4		 5*6*6
 SIP510 Ø510*1300 500KG ≤8H 360 三区 6*7*6
 SIP800 Ø800*2000 1T ≤10H 640 四区 7*8*6

Technical Characteristics
1) One-click start, fully automatic operation, data record backup of the whole process, and read it at any time;
2) Using a special furnace structure and heater arrangement, the furnace temperature uniformity is good;
3) Heating system arc real-time monitoring system to prevent serious damage to the entire heating system and furnace body;
4) Using special structure muffle, the sealing effect is good, the degreasing is complete, and there is no pollution to the components in the furnace;
5) It has flexible vacuuming, vacuum sintering, micro-positive pressure sintering, 1-80KPa partial pressure sintering, negative pressure degreasing, micro-pressure degreasing and other functions;
6) Multiple safety interlocks, high equipment safety, escort for safe production;
7) Multi-zone independent temperature control, the furnace door hard felt adopts special step structure to ensure the temperature uniformity of the whole furnace;
8) Special heating body and muffle arrangement structure, easy to maintain;
9) The program has a power-off and heat-renewing function, and once power is off, it is not necessary to restart the program;
10) Modular assembly, quick installation and commissioning
11) Remote control to achieve zero distance fault diagnosis and repair work
