Basic info
Model NO.: HS-EQ-Unipol-820
Structure: Desktop
Certification: CE, ISO
Type: Heavy Duty Grinding / Polishing Machine
Variable Speed: From 0 - 600 Rpm
Transport Package: Wooden Case
Origin: China
Customized: Non-Customized
Material: Steel
Application: School, Lab
Polishing Plate: 3 Pins Plug-Type
Trademark: HS
Specification: heavy duty grinding / polishing machine
Product Description

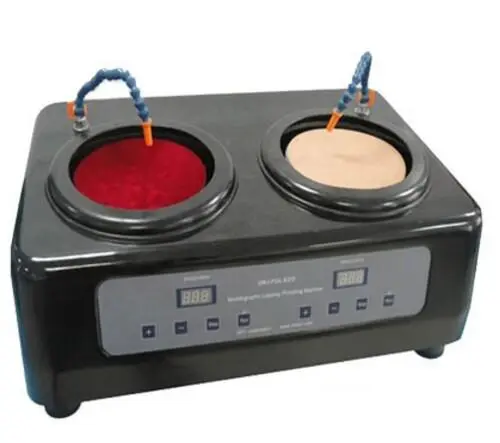

Heavy Duty (8") Dual Platens Grinder/ Polisher with Magnetic Plates EQ-Unipol-820
Description of the heavy duty dual platens grinder / polishier:
HS-EQ-UNIPOL-820 is a heavy duty grinding / polishing machine with two 8" lapping plates and independent speed control. Upgraded magnetic plates were installed in the machine, which makes installing sandpaper / polishing pad quickly and easily. UNIPOL-820 is perfect for use in a metallographic lab to prepare small samples faster and easier.
Specification of the heavy duty dual platens grinder / polisher:
| Structure | Heavy duty fiberglass case with anti-corrosion painting surface.
Belt driven platen with stable and quiet operation.
Soft rubber splash guard ring for safe operation. |
| Power | AC 110V and 208-240V (50/60Hz) switchable for worldwide operation. |
| Motor | Two 300W high torque DC motor with belt pulley with independent speed control. |
| Variable speed | from 0 - 600 RPM with digital display for each plate. |
| Polishing plate | 3 pins plug-type; Fast installation and take off |
| Product dimension | 580 L x 420 W X 350 H (mm) |
| Net weight | 44 Kg |
| Shipping dimension | 42" x 48" x 25" (inch) |
| Shipping weight | 160 lbs |
| Warranty & Compliance | CE Certified |
| Application Notes | Warning: Please always clean machine after each use. and don't overflow water into inside machine |
| Warranty | One year limited with lifetime support
Rusting and damage due to improper storage condition or maintenance are not covered by warranty |
standard packing list of the polishing machine:
| P/N | Description | Qty |
| UP820-01 | Aluminum alloy master plate 8" dia lapping plate | 2 set |
| UP820-02 | 8" dia.x 0.8 mm thick permanent magnetic sheet with PSA backing
(installed in Aluminum plate) | 2 set |
| UP820-03 | 8" dia. Diamond Lapping plates with 320 mesh and 600 mesh separately
(without PSA, can be directly attached to the magnetic plate) | 2 set |
| UP820-04 | 8" dia x 0.7mm thick steel buffer sheet (Zinc coated) for carrying sandpaper and polishing pad,
(which can be attached to magnetic plate at stable and take off at easy) | 4 set |
| UP820-05 | 8" Sic sand papers (2 of each at mesh of 240#, 400#, 800#,1500#) | 2 set |
| UP820-06 | 8" PSA black polishing pads for final polishing. | 2 set |
| UP820-07 | 10g 0.25 micron diamond paste for faster polishing. | |
