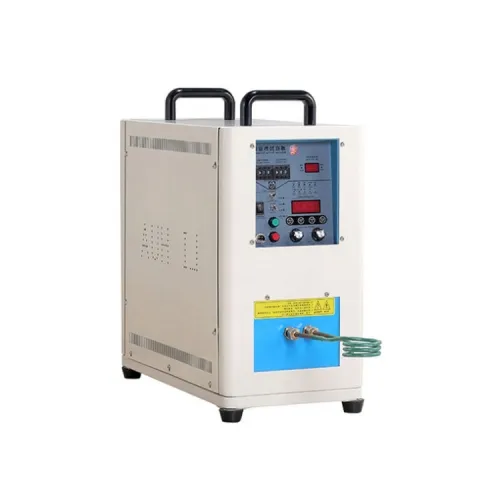

Desktop High Frequency Induction Heater 100-500kHz 6KW

Compact 6KW Ultra High Frequency Induction Heater is designed for quickly melting small quantity ( 3 L/Min●Pressure: ≥ 0.2 MPa (29 Psi)●Tap water is acceptable, but using Recirculating Water Chiller is highly recommended. Protection: Over pressure and over temperature switch

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Compact 6KW Ultra High Frequency Induction Heater is designed for quickly melting small quantity (<100g) of metallic material.

Technical parameters of high frequency induction heater:

Working Voltage	180 - 245 V AC, 50-60 Hz, Single Phase
Max. Output Power	6KW
Input Current	5 - 30 Amp (50A breaker required) Adjustable with digital display
Output Frequency	100 - 500 kHz
Duty Cycle	100%
Max. Sample Weight	100g
Timer Control	●Automatic timer control or Manual control selectable ●Manual Control: by Foot Pedal ●Automatic Heating Time: 1-99 Seconds ●Automatic Dwell Time: 1-99 Seconds ●Automatic Cooling Time: 1-99 Seconds
Air Cooling	Rear Fan
Water Cooling	●Flow rate: > 3 L/Min ●Pressure: ≥ 0.2 MPa (29 Psi) ●Tap water is acceptable, but using Recirculating Water Chiller is highly recommended. Protection: Over pressure and over temperature switch
Water protection	Over pressure and over temperature switch
Induction Coil	●Made by 5mm Dia. Copper tube (One Coil 20mmDia. x 45mmH is included) ●Customized copper coil is available at an extra cost ($300/ea) upon request
Product Dimensions	520mm(L) x 240mm(W) x 500mm(H)
Warranty	One Year limited warranty with lifetime support
Net Weight	24 kg (53 lbs)
