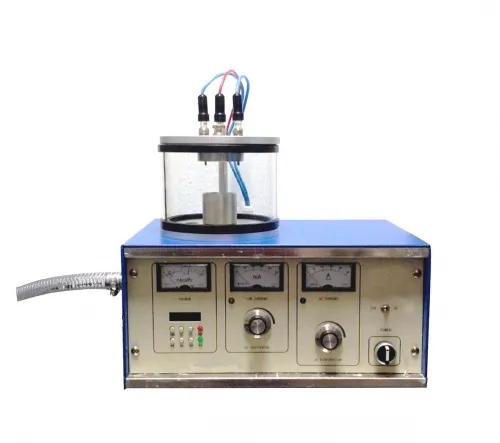

Compact DC Magnetron Sputtering&Evaporation Coater for Gold and Carbon Coating HS-1100X-SPC-16C

HS-1100X-SPC-16C is a CE certified compact DC magnetron sputtering and evaporation coater with a adjustable controller. It can DC sputtering coat metallic materials and evaporation carbon onto the sample with the diameter up to 50 mmDC Magnetron Sputtering &evaporation coater
Products Inquiry

Product Details

HS-1100X-SPC-16C is a CE certified compact DC magnetron sputtering and evaporation coater with a adjustable controller. It can DC sputtering coat metallic materials and evaporation carbon onto the sample with the diameter up to 50 mm
 DC Magnetron Sputtering &evaporation coater
 Model No. HS-1100X-SPC-16C
 Target diameter Φ50mm
 Sample stage Φ50mm
 Chamber dimension Φ160*110mm
 Vacuum degree 4×10-1mbar-2×10-2mbar
 Maxi working current 50mA
 Maxi Time setting 9999s
 Maxi voltage 1600VDC, adjustable
 Vacuum pump Two stage rotary vacuum pump
 Working voltage AC220V  50Hz
