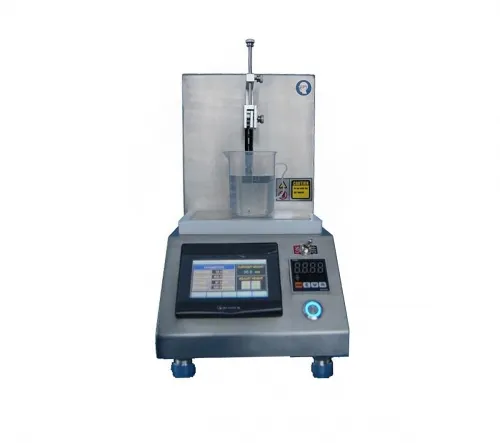

Desktop Dip Coater with variable Speed 0.1~600mm/min and heat plate HS-DP100-BEH

Features1.4.3” LCD touch panel, easy operate2.High precision temperature control table control,anodic aluminum oxide heating panels3.Compact structure, can be input glove box4.Fluctuation position can be adjusted manually5.Can pre-store 100sets coating programmable.&nbs

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Features
1.4.3” LCD touch panel, easy operate
2.High precision temperature control table control,anodic aluminum oxide heating panels
3.Compact structure, can be input glove box
4.Fluctuation position can be adjusted manually
5.Can pre-store 100sets coating programmable.

Model No.	HS-DP100-BEH
Dipping speed	0.1~600mm/min
Maximum distance	100mm
Repetitive accuracy	±0.1mm
Rated thrust linear	>50N
Dipping time	0~9999.9s
Repeat coating time interval	0~9999.9s
Repeat time	1~999s
Maximum wafer	100mm
Heating temperature	Rm~120℃
Working voltage	AC 110-220V, 50Hz
Outer dimension	363227416mm
