Product Details

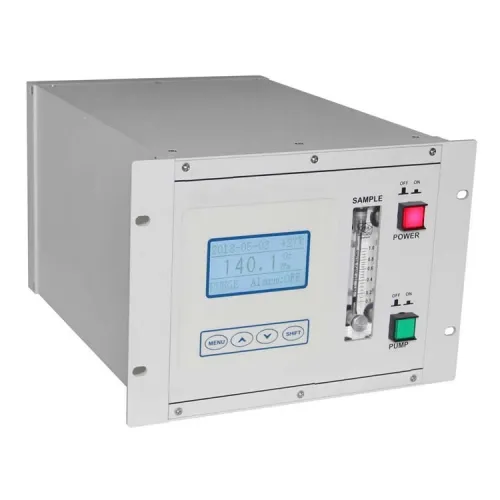

Trace oxygen analyzer adopt an unique protection air circuit which can protect the sensor efficiently and prevent the sensor from being exposed in the air for too long to affect its serving life. The imported fuel-cell oxygen sensor is with long serving life, a rapid response speed, high measurement accuracy and long calibration cycle for features, etc.
Trace oxygen analyzer main features:
1. Only one random point needs to be calibrated among the whole measurement range, and the measured accuracy among the whole measurement range can be met without multi-points calibration;
2. Function of built-in temperature compensation could eliminate the influence from the changes of environment • temperature on the measured accuracy;
3. Function of storing data automatically makes looking through historical data at any time possible;
4. Function of shifting Chinese-English menu makes the operation visual and easy;
5. Built-in imported extraction pump (optional).

Trace oxygen analyzer technical parameters:

Test principle	micro-fuel cell
Display mode	128*64 matrix dot LCD
Test Range	0 ~ 10/100/1000ppm,1.00%,25.00% O₂
Resolution	0.1ppm
Accuracy	0~1000ppm /1.00%/10.00% /25.00% ≤±1% FS 0~100ppm ≤±2% FS 0~10ppm ≤±5%FS
Repeatability	≤±1%
Response time	T₉₀≤60S
Analog output	4~20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm) 0~10V.DC(non-isolated output, loaded resistance higher than 10k Ohm) 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Communication Port	RS232 (default) or RS485
Power supply	AC170 ~ 264V 50/60Hz
Temperature of the sample gas	0 ~ 50℃
Sampling mode	Sample gas pass-in or extraction
Sample gas flow	600 ~ 800ml/min
Working pressure(without pump)	0.05MPa≤entrance displayed pressure≤0.35MPa, steady pressure environment
Working pressure(with pump)	micro-positive pressure, micro-negative pressure or ordinary pressure
Background gas	He、H₂、CO₂、N₂ and inactive gas
Appearance Size	177mm×251mm×343mm (H×W×D)
Install Hole Cut	179mm×213mm (H×W)
Serving life	＞24 months(under normal use)
Gas circuit port	NPT 1/8 internal thread
Install mode	frame mount
