Product Details

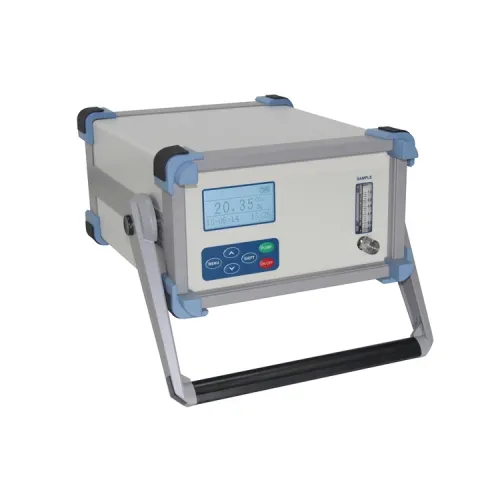

Portable purity oxygen analyzer adopts the imported limiting current sensor as the measured unit, with a rapid response speed and long calibration cycle for features, etc. With the function of sensor protection, the instrument can be turned on under any circumstances without affecting the sensor's serving life. The built-in sensor temperature-compensation circuit could avoid the influence from temperature change on the measured accuracy.
Portable purity oxygen analyzer main features:
1. Power is supplied by large-capacity lithium battery, with the continuous measuring time more than 24 hoursand the standby time more than 168 hours;
2. Altitude measurement module can be expanded to avoid the influence from atmosphere pressure change on the measured accuracy;
3. With the functions of built-in compensation and sensor protection, the analyzer can be on power under 99.99%condition without affecting the sensor’s serving life;
4. Function of storing data automatically allows users to look through historic data at any time;
5. The measured accuracy of the whole measurement range can be met by a random point calibrated, making the calibration simple and convenient;
6. Sampling pump built in (optional).

Portable purity oxygen analyzer technical parameters:

Test principle	ion current (limiting current )
Display mode	128×64 matrix dot LCD
Test range	10.00% ~ 99.99% O₂
Resolution	0.01%
Accuracy	≤±1%FS
Repeatability	≤±1%
Response time	T₉₀≤30S
Sample gas temperature	-10 ~ +50℃
Sampling mode	sample gas extraction or pass-in
Sample gas flow	300 ~ 600ml/min
Sample gas pressure(without pump)	0.05Mpa≤entrance displayed pressure≤0.35Mpa, steady pressure environment
Sample gas pressure(with pump)	micro-positive pressure, micro-negative pressure or ordinary pressure
Background gas	N2 and inactive gas
Appearance Size	155mm×260mm×340mm (H×W×D)
Serving life	type C＞5 years, type D＞3 years(under normal use)
Gas circuit port	NPT 1/8 internal thread
Charging source	AC100 ~ 240V 50/60Hz
Battery capacity	11.1V / 11AH
Install mode	portable mode
