Product Details

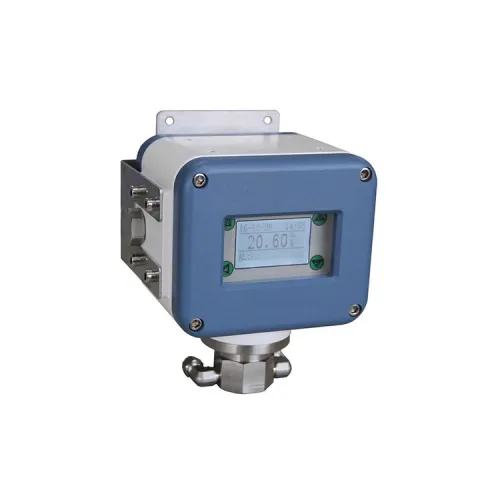

Online explosion-proof oxygen transmitter has a liquid-crystal display that makes the display visual and the operation easy.The set of the menu can be accomplished by magnetic pen under explosion-proof occasion which is convenient for the operation in the scene.
Online explosion-proof oxygen transmitter main features:
1.The imported micro-fuel cell oxygen sensor has the advantages like a rapid response speed, high measured accuracy, excellent linearity, long calibration period, weak-acid resistance and weak-alkali resistance;
2.Only one random point needs to be calibrated among the whole measurement range, making the calibration operation simple and convenient;
3.The auto-compensation system for pressure with high accuracy could eliminate the influence from environment pressure;
4.The auto-compensation system for temperature with high accuracy could eliminate the influence from environment temperature.

Online explosion-proof oxygen transmitter specifications:

Test principle	micro-fuel cell
Display mode	128×64 matrix dot LCD
Test range	0 ~ 10/100/1000ppm,0~ 25.00% O₂ (different range optional,micro-range or ordinary range)
Accuracy	0~1000ppm/1.00%/10.00%/25.00%≤±1%FS 0~100ppm ≤±2%FS 0~10ppm ≤±5%FS
Repeatability	≤±1%
Response time	T₉₀≤60S
Analog output	4~20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm) 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Power supply	DC24V/0.5A
Sample gas temperature	0 ~ 50℃
Environment temperature	＜80%RH
Sampling mode	Sample gas pass-in
Sample gas flow	600 ~ 800ml/min
Entrance pressure	90 ~ 110Kpa, steady pressure environment(absolute pressure)
Sample gas composition	no strongly corrosive gas, dust amount less than 1mg/Nm3
Appearance Size	196mm×170mm×134mm (H×W×D)
Serving life	＞24 months (under normal use)
Explosion-proof level	Exd IIB T4
Install mode	wall mount
