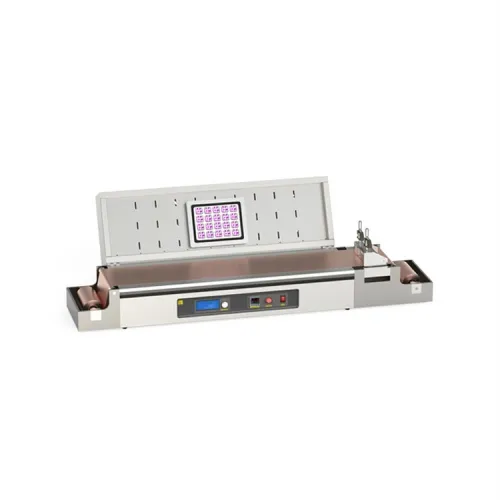

This small automatic drying film coating machine is mainly used for coating liquid or colloidal film in the laboratory. The equipment uses a continuously variable motor to accurately control the coating film speed to achieve the purpose of advancing the scraper at a uniform speed for coating. The scraper adopts All stainless steel material has a constant weight, which can improve the consistency and uniformity of the coating film. The equipment adopts the bottom vacuum to absorb the sample, and has the bottom heating function, the heating temperature can reach up to 120℃, and the function of baking the film is realized during the film coating process, so that the film can be dried quickly.
At the same time, the equipment is equipped with a winding and unwinding device, which can be used for continuous coating of copper foil or aluminum foil. The upper cover is equipped with an ultraviolet curing lamp, which can be used for curing and drying the film. This equipment is very suitable for continuous production of battery electrode materials.

Roll to Roll film coating machine specifications:

Product number	HS-AFC360R-HTUV
Input power	AC220V, 60Hz
Heating power	3000W
Total power	3100W
Coating vacuum chuck size	360mm x 200mm
Film thickness accuracy	±0.01mm
Film applicator	300 width
Rewinding and unwinding mechanism	The speed of the rewinding and unwinding mechanism is adjustable from 1 to 400mm/min, and the mechanism adopts feedback adjustment, which can automatically correct the speed deviation
Heating temperature	≤120℃
Top UV	Wavelength 365nm
Temperature accuracy	±1℃
Overall size	1245mm x 500mm x 270mm (close the protective cover) 1245mm x 550mm x 670mm (open the protective cover)
Net weight	About 100kg
Mechanical pump	FY-4C-N
Pumping rate	4m³/h
Exhaust interface	φ8 quick screw joint
