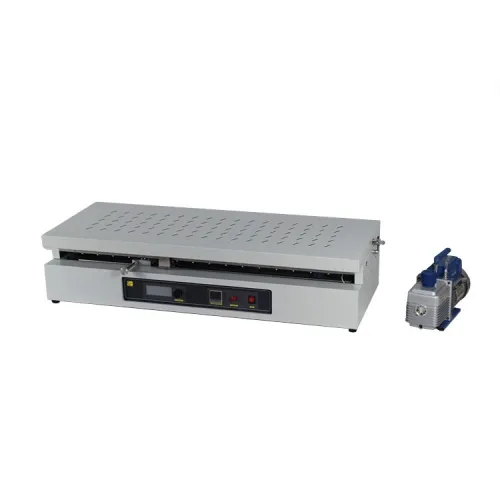

Compact laboratory bottom heating type casting coater

This machine is a bottom-heated small coater with a maximum heating temperature of 200 °C. The substrate is fixed by vacuum adsorption and the activated carbon filtration system is installed on the top to protect the laboratory environment. This device is especially suitable for high temperature
Products Inquiry

Product Details

This machine is a bottom-heated small coater with a maximum heating temperature of 200 °C. The substrate is fixed by vacuum adsorption and the activated carbon filtration system is installed on the top to protect the laboratory environment. This device is especially suitable for high temperature coated polymer films and conductive ceramic films.

Compact laboratory bottom heating type casting coater specificatons:
 Power

208×240V AC 50/60Hz

1500W
 Heatable Vacuum Platform

1.Vacuum chuck made of aluminum alloy with micro-size hole

2.Vacuum chuck Area: 250mm(W)×400 mm(L) (10"W×16"L)

3.Heating elements are installed inside chuck which can reach 200ºC Max.

4.Precision digital temperature controller with +/-1ºC accuracy
 Film  Applicator ●Built in pushing bar for using micrometer adjustable applicator.
●180mm width Applicator with micrometer adjustable head is included for immediate use .
●24VDC motor driven the pushing bar continuously to the adjustable position, which can be used under Ar gas glovebox.
●Note: Thinnest film can be achieved is>10 micron
 Max. Coating Area 350mm(L)×250mm(W)
 Accuracy of Film thickness ●+/-0.01mm
 Traverse  Speed &   Distance ●Travel Speed: 0-80mm/sec variable
●Travel distance: 0-400 mm adjustable
 Top Cover and Filter ●Active carbon filter and venting fan are installed on the top cover
●The filter will remove organic vapor to make lab environmental safe & clean
 Net weight 40 kg (90 lbs)
 Warranty One Year limited with lifetime support
