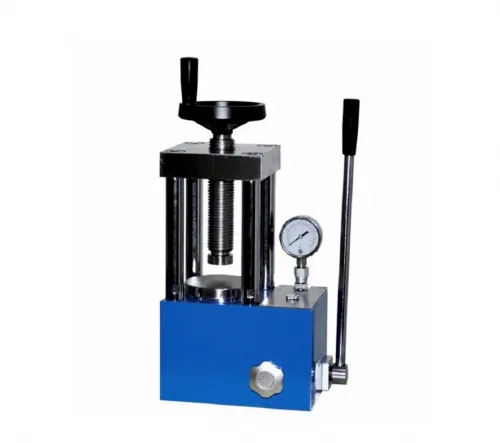

24T manual powder hydraulic press HS-PC-24

Model No.HS-PC-24Pressure gauge0~24T (0~34MPa)Piston diameterΦ95mmMain structureAll in one structure, no oil link pointPressure gaugepointer pressure gauge, can replace digital
Products Inquiry

Product Details

 Model No. HS-PC-24
 Pressure gauge 0~24T (0~34MPa)
 Piston diameter Φ95mm
 Main structure All in one structure, no oil link point
 Pressure gauge pointer pressure gauge, can replace digital gauge
 Max piston distance 30mm
 Pressure stability ≤1MPa/10min
 Working stage Φ105mm
 Working space 80*150mm
 Outer dimension 245*175*415mm
 Gross Weight 42kg

24T hydraulic press pressure conversion
 Real Pressure System Pressure
 1T 1.41MPa
 2T 2.82MPa
 3T 4.23MPa
 5T 7.06MPa
 8T 11.3MPa
 10T 14.1MPa
 15T 21.2MPa
 20T 28.3MPa
 24T 34MPa
