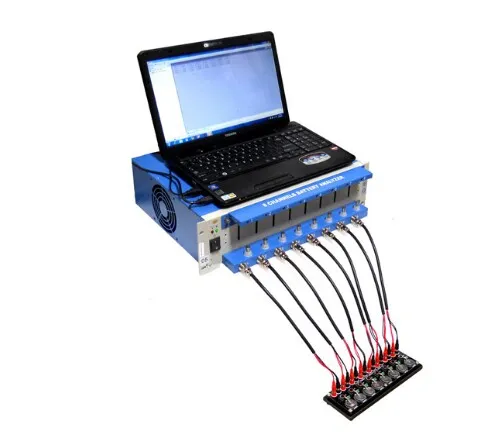

8 Channel Battery Charge Discharge Electric Tester with Software

Basic InfoModel NO.: HS- BST8-WATest Region: Charge and DischargeCustomized: CustomizedTesting Sample: 4-Wire ConnectingRecord Frequency: 1HzCertificate: CeTransport Package: Wooden BoxOrigin: Zhengzhou, ChinaType: Finished Batteries TesterApplication: Lithium-ion BatteryInput

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Basic Info
Model NO.: HS- BST8-WA
Test Region: Charge and Discharge
Customized: Customized
Testing Sample: 4-Wire Connecting
Record Frequency: 1Hz
Certificate: Ce
Transport Package: Wooden Box
Origin: Zhengzhou, China
Type: Finished Batteries Tester
Application: Lithium-ion Battery
Input Power: 224W
Noise: <85dB
Warranty: One Year
Trademark: HS
Specification: 5V 3A
HS Code: 85141090

Product Description

BTS-5V3A Battery Testing Equipment
Equipment Model :BTS-5V3A Battery Testing Equipment Equipment Item Code:CT-3008W-5V3A-164

Project index		Parameter index
Input Power		AC 220V ±10% / 50Hz
resolution		AD:16bit;DA:12bit
Input Resistance		≥1MΩ
Input Power		224W
Channel Features		Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
Channel Control Mode		Independent Control
Voltage	Per Channel Voltage Range	10mV~5V
	Discharge Min Voltage	0.8V
	Accuracy	± 0.1% of FS
	Stability	± 0.1% of FS
Current	Per Channel Current Range	6mA~3000mA
	Accuracy	± 0.1% of FS
	Stability	± 0.1% of FS
Power	Per Channel Output Power	15W
Power	Stability	± 0.2% of FS
Time	Current Response Time	1ms (0-Full Range)
Time	Step Time Range	≤(365*24 )hour/step, Time Form Support 00:00:00(h,min:s,ms)
Data Recording	Record Condition	Time△t:1S-60000S
		Voltage△U:10mV-5V
		Current△I:6mA-3000mA
	Record Frequency	1Hz
Charge	Charge Mode	Constant Current Charge,Constant Voltage Charge, Constant Current and Constant Voltage Charge
Charge	End Condition	Voltage,Current,Relative Time,Capacity
Discharge	Discharge Mode	CCD,CPD
Discharge	End Condition	Voltage,Current,Relative Time,Capacity,
Pulse	charge	CCC
	Discharge	CCD
	Min Pulse Width	500ms
	Automated Switch	Automated switch from charge to discharge for each pulse
	End Condition	Voltage, Test Time
Cycle	Loop Measure Range	1~65535 times
	Max Steps Per Loop	63
	Nested Loop	Nested loop Function,Max Support 3 Layers
Protection	Software Protection	Power-down Data Protection
		Off-line Testing Function
		Setting Protection Condition,Setting Parameter:Low Voltage limit,Upper Voltage limit,Low Current limit,Upper Current limit,Delay Time
	Hardware Protection	Additional Anti-reverse Protection Model
Voltage and Current Testing Sample		4-wire connecting
Noise		<85dB
Database		MySQL Database
Data Output		EXCEL2003/2010,TXT
Communication Interface		R232
Per Unit Main Channels No.		8
Dimensions		3U,480330130(mm)
