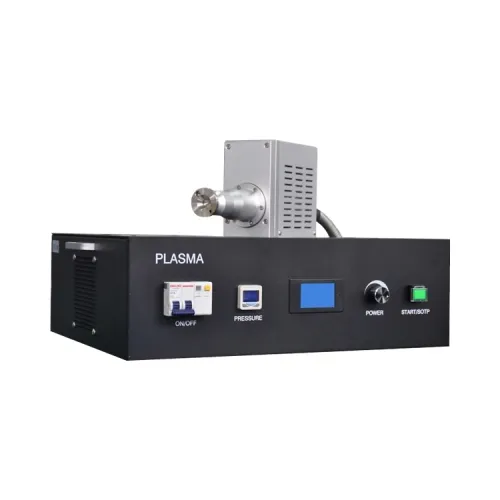

Atmospheric low temperature plasma cleaner

System standard accessoriesEquipment size560W * 186D *452Hmmweight20KGInput power220V,50/60Hzpower1000W adjustableHigh voltage frequency10-40

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

System standard accessories
Equipment size	560W * 186D *452Hmm
weight	20KG
Input power	220V,50/60Hz
power	1000W adjustable
High voltage frequency	10-40KHz
Protection	Overload protection, short circuit protection, open circuit protection, temperature protection
remote control	Local control and remote control are available
Spray gun selection
Direct spray gun	2mm,5mm
Magnetic suspension rotary motor spray gun	50mm,70mm

Atmospheric low temperature plasma cleaner advantages:
Plasma cleaning is an important material surface modification method and has been widely used in many fields. Compared with some traditional cleaning methods, such as ultrasonic cleaning, UV cleaning, etc., it has the following advantages:
(A) low processing temperature
The processing temperature can be as low as 80℃ and below 50 ℃. Low processing temperatures ensure no thermal effects on the sample surface.
(B) no pollution during the whole process
The plasma cleaner itself is a very environmentally friendly device that does not cause any pollution and does not cause any pollution during the treatment process. It can be combined with the original production line to achieve fully automatic online production, saving labor costs.
(C) stable treatment effect
The treatment effect of plasma cleaning is very uniform and stable, and the conventional sample maintains good effect for a long time after treatment.
(D) It can be perfectly matched with automated assembly lines to increase production efficiency
According to the user's site requirements, the optimal assembly line production plan is configured to greatly improve production efficiency.

Atmospheric low temperature plasma cleaner product principle:
The structure of the plasma cleaning machine is mainly divided into three major components, namely high-voltage excitation power supply, plasma generator spray gun, and control system.
(A) High-voltage excitation power supply:
The generation of plasma requires high-voltage excitation, and the atmospheric low-temperature plasma is excited by an intermediate frequency power supply at a frequency of 10-40 kHz. The high voltage is at 4-10KV. The parameters can be adjusted according to the actual conditions of the sample, and the optimal modification effect has been achieved.
(B) Plasma generator spray gun:
The atmospheric low-temperature plasma generator spray gun can be divided into two types: jet flow direct injection and rotary direct injection, the difference is that the treatment area is different.
(C) Control system:
The control system functions is to control the operation of the entire atmospheric low temperature plasma cleaning equipment and the protection of the overall system
