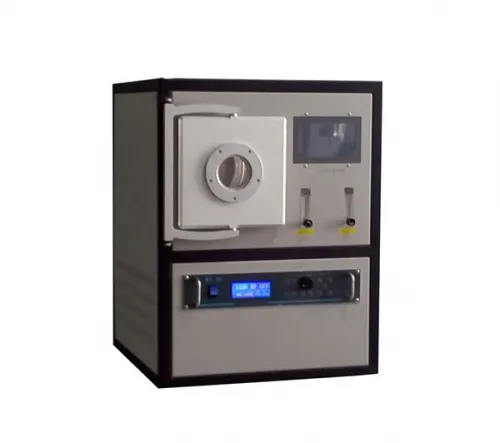

10L 13.56MHz Plasma Cleaner

Technical parmatersPower supply:AC220VWorking current:Total working current not higher than1.2A (Not include the vacuum pump)RF Power:200WRadio frequency:13.56MKHZ(offset less than 0.2Hz)&nb

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Technical parmaters

Power supply:	AC220V
Working current:	Total working current not higher than1.2A (Not include the vacuum pump)
RF Power:	200W
Radio frequency:	13.56MKHZ(offset less than 0.2Hz)
Frequency offset	Less than 0.2KHz
Characteristic impedance:	50 Ohm,Automatic matching
Vacuum degree:	30Pa—100Pa
Gas flow:	10—100ml/min(Adjustable)
Process Control:	MCU Automatic and manual mode
Cleaning time:	1-6000 secds adjustable
Power supply:	10%-100% Adjustable
Inside chamber size	200mm×320mm
Outside dimension:	600600780mm
Weight:	45Kg
Vacuum chamber temperature	Less than 65°C
Cooling type:	Forced cooling

Application
1.Car industry: ignition coil engine oil seal film
2.Defense industry: Aerospace electrical connectors,Kevlar deal
3.Electronics industry: hard plastic parts, earphone, Cell phone cover
4.Medical industry: intravenous infusion, catheter treatment
5.Textile fiber,rubber and plastic industry and etc
