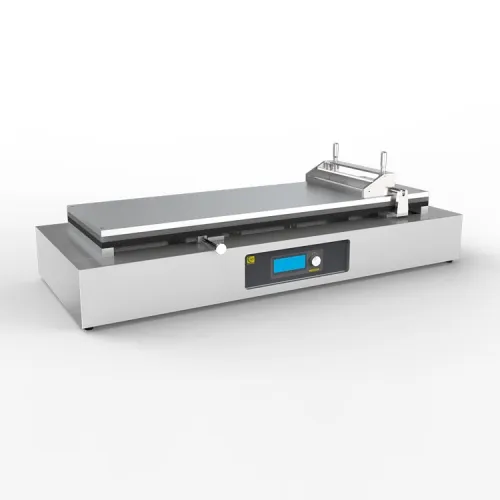

Automatic Film Coater with 13"W x 21"L Glass Bed with 420mm Adjustable Doctor Blade HS-PF400-H

Features1.7” LCD Touch Panel,humanism operation interface2.Anodized aluminium mirror substrate,vacuum adsorption function3.The sample plate has heating function,temperature accuracy control,good heating uniformModel No.HS-PF400-HFilm coating sp

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Features
1.7” LCD Touch Panel,humanism operation interface
2.Anodized aluminium mirror substrate,vacuum adsorption function
3.The sample plate has heating function,temperature accuracy control,good heating uniform

Model No.	HS-PF400-H
Film coating speed	1~300mm/s
Adjustable accuracy	1mm/s
Max distance	420mm
Vacuum adsorption area	A4/A3 optional
Vacuum plate	345*540mm
Heating power	2.5kw,12A
Heating uniform	<±1%
Temperature range	Rm~200℃
Temperature accuracy	±0.5℃
Outer dimension	630550324mm
