1700℃ hydrogen reduction CVD system with 2-channel float flowmeter to supply gas HS-T1700-100IC-2F-HP

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

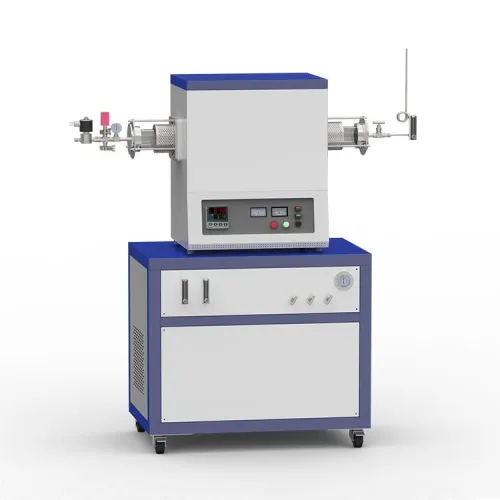

1700℃ hydrogen reduction CVD system can be used for vacuuming and filling atmosphere, so it is also called vacuum tube furnace and atmosphere tube furnace. The tube is made of a seamless high purity alumina and the maximum working temperature is up to 1650℃. In order to match the test requirements for the introduction of hydrogen, the tube furnace is equipped with a manual ignition device at the right end of the furnace tube to ensure the safety of the test; a vacuum gauge and an air pressure gauge are arranged on the left side of the furnace tube to control the vacuum and atmosphere inside the furnace tube. Further safety of the test is ensured by the interlocking of the solenoid valve and the pressure sensor and the flammable gas detection device.
This system also includes a two-channel float flow meter with a stainless steel needle valve and an air pressure gauge to accurately mix the gas that meets the test requirements. Under normal circumstances, this set of instruments is used with a double stage rotary vane vacuum pump to achieve a general low vacuum test environment. If you need a higher vacuum, you can contact our technicians to select a more powerful molecular pump.

1700℃ hydrogen reduction CVD system applications：
The device is widely used in materials or chemical laboratories to sinter various new material samples under hydrogen or hydrogen-nitrogen mixed gas conditions.

1700℃ hydrogen reduction CVD system technical parameters:

Vacuum tube furnace	Max power	2.5kw
	Tube material	High purity alumina
	Tube diameter	100mm
	Tube length	1000mm
	Furnace chamber length	440mm
	Heating zone length	400mm
	Constant temperature zone	200mm
	Operating temperature	0～1650℃
	Temperature control accuracy	±1℃
	Temperature control mode	30 or 50 segment program temperature control
	Display mode	LCD
	Sealing method	304 stainless steel vacuum flange
	Flange interface	1/4" ferrule connector, KF16/25/40 joint
	Vacuum	4.4E-3Pa
	Power supply	AC:220V 50/60Hz
	Ignition device	Manual ignition
Gas supply system	Model	HS-2F
	Gas channel	2-channel
	Measuring unit	Gas float flowmeter
	Measuring range	A channel: 0～100ml H2 gas	Remarks: If you need other ranges or gas types, you need to specify when ordering.
		B channel: 16～160ml N2 gas
	measurement accuracy	±2.0%
	Pipe pressure resistance	3MPa
	Working pressure difference	50～300KPa
	Connecting pipe	304 stainless steel
	Gas channel	304 stainless steel needle valve
	Interface specification	1/4" ferrule connector for gas inlet and outlet
Exhaust system	Mechanical pump	Rotary vane pump
	Pumping rate	1.1L/S
	Exhaust interface	KF16
	Vacuum measurement	Resistance gauge
	Ultimate vacuum	1.0E-1Pa
	Power supply	AC:220V 50/60Hz
	Pumping interface	KF16
