| Furnace Structure |

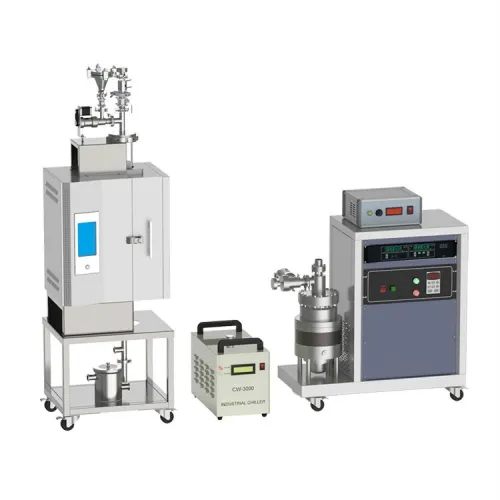

●Two Heating Zone Split Vertical Tube Furnace for longer and uniform constant temperature zone.
●The ultrasonic spray nozzle can make liquid/water atomized via gravity and low-pressure compressed air.
●Volumetric Feeder for feeding solid powder into a furnace to form core/ shell structure |
| Upgrade |
●If you need a horizontal furnace, we will change to the same specification tube furnace at no cost.
●You could upgrade from 40KHz to 3 KW and 120 KHz, Ultrasonic Spray Nozzle at extra cost |
| Power for Furnace |
6KW (total) / each zone: 3KW |
| Voltage |
AC 208-240V Single Phase, 50/60 Hz |
| Max. Temperature |
1200℃ (<1 hr) each zone |
| Continuous Temperature |
1100℃ for each zone |
| Max. Heating Rate |
<= 20℃/min. |
| Temperature Accuracy |
+/- 1℃ |
| Tube Size and Materials |
●One 1000mm length quartz tube is included
●OD: 100 mm, ID. 95 mm
●Foam ceramic blocks with alumina coating are included, which is hanged on top of flange to protect O-ring damaged by heat radiation |
| Heating Zone Length |
●200mm ( bottom )
●200mm ( top )
●400mm ( total ) |
| Constant Temperature Zone |
Constant temperature zone: 300 mm (+/-1℃) if two heating zones are at the same temperature |
| Temperature Controller |
●30 programmable segments for precise control of heating rate, cooling rate and dwell time.
●Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.
●Over temperature protection and alarm allows for operation without attendant(s).
●RS485 Communication Port. |
| Vacuum Sealing Flange |
●Two stainless steel flanges with vacuum gauge and valves included
●A hook ring is welded inside the top flange for hanging thermal block or crucible by wire
●Gas outlet ( vacuum port ) on top with 1/4" barb connector.
●Gas inlet on bottom with 1/4" barb onnector |
| Vacuum Level |
●10E-2 Torr by mechanical vacuum pump
●10E-5 Torr by molecular pump
●Leak rate < 5 mTorr / min. |
| Heating Element |
1300°C Fe-Cr-Al Alloy doped by Mo |
| Dimensions |
550mm(L) x 380mm(W) x 520mm(H) exclude mobile cart
600mm(L) x 600mm(W) x 1200mm(H) install with mobile cart
|
| Net Weight |
About 80 kg (excluding mobile cart) |
| Shipping Size |
48"(L) x 40"(W) x 72''(H) |
| Shipping Weight |
400 lbs |
| Warranty |
One year limited warranty with lifetime support |
