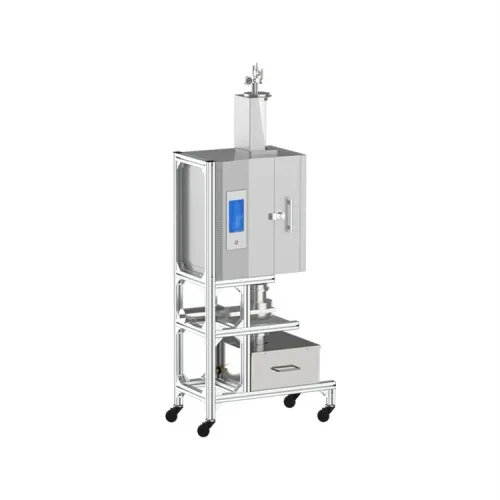

HS-1200X-4-VTQ is a vertical quenching furnace, the main body is an open type vertical tubular furnace, the flange on the furnace tube is equipped with hook and plug, which can be manually released to make the hanging sample fall down; the lower flange is connected with the sealed liquid container through a φ 100 mm flange, and the liquid container can contain ice water or cold oil.
High purity alumina is used as furnace material in tubular furnace, which can improve thermal efficiency and service life of furnace.
Rotary vane mechanical pump is used in vacuum pump, which can provide vacuum environment for vacuum quenching.
The liquid container is of double-layer structure, with excellent vacuum pressure resistance and reliable sealing. The box body is fixed by jacking wire and equipped with a liquid outlet valve, which is convenient for sampling and changing liquid.
Vertical quenching tube furnace application:
The equipment is suitable for studying phase transformation and microstructure properties of materials.

Technical parameters of vertical quenching tube furnace:

Model	HS-1200X-4-VTQ
Power supply	Voltage:220V 50Hz power:3KW
Heating element	Alloy resistance wire
Temp. zone length	440mm,constant temperature zone 200mm
Working temperature	Max1200℃(＜1h),continuous working 1100℃
Heating rate	≤20℃/min, recommended ≤10℃/min
Thermocouple	K-type
Temperature control	PID temperature control system, accuracy±1℃; Multi stage temperature control program can be set to accurately control heating and cooling rate and constant temperature time; It has overheat and broken couple protection
Tube	Material: high purity quartz; Size: O.D φ 100mm I.D94mm x L 1000mm
Vacuum flange	Upper flange:Φ 100 vacuum stainless steel flange with manual hook opening device Lower flange:Vacuum stainless steel flange with CF100 flange adapter
Quenching vessel	Double shell, with outlet valve
