Product Details

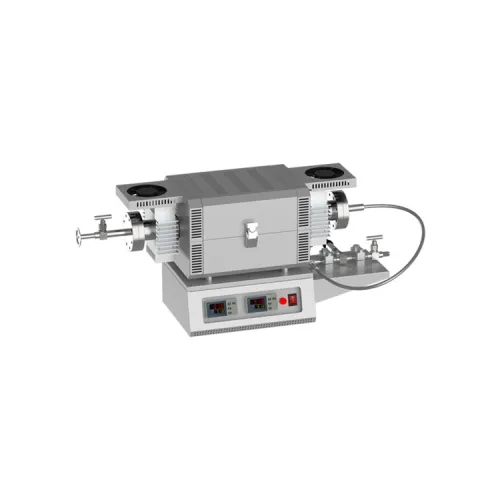

HS-H1200-1L high pressure tube furnace is mainly composed of three parts: heating system, high temperature and high pressure furnace tube and pressure measurement and control system. It can realize the three functions of automatic stamping, overpressure release and automatic temperature control. It is also equipped with process software, which can realize the whole collection of data during the sintering process, and provide the most true and reliable basis for the analysis and research of experimental data. The equipment can be widely used for high temperature and high pressure processing of nano materials, high temperature and high pressure sintering of special functional ceramics, and this high temperature and high pressure modulation method is used to change the thermal properties and electrical conductivity of the materials.

Mini high pressure tube furnace technical parameters:

Item	Detail
Supply voltage	AC220V/110V, 50Hz/60Hz
Total power	2KW
Operating temperature	≤1100℃
Heating rate	Suggest 10℃/min
Thermocouple type	K-type thermocouple
Furnace tube size	O.D.φ60mm I.D φ25 xφ L. 600mm
Furnace tube material	Super high temperature alloy
Sealing flange	Pressure flange
Pressure measurement	Semiconductor pressure gauge
Overvoltage protection	Safety vent valve
Heating zone	Single heating zone 200mm
Temperature control	1) PID automatic control of heating rate, cooling rate and holding time 2) PID control over temperature protection and thermocouple failure protection 3) It has over-temperature protection alarm function, so the equipment can run unattended 4) The temperature accuracy is ±1℃ (the difference between the displayed temperature and the actual temperature) 5) AI-PID 30-segment process curve, can store multiple 6) Temperature control accuracy ±1℃
Work pressure	≤4Mpa @800℃ ≤2.5Mpa @900℃ ≤1.2Mpa @1000℃ ≤0.8Mpa @1100℃
Working gas	Non-corrosive gases such as nitrogen, argon, and oxygen
