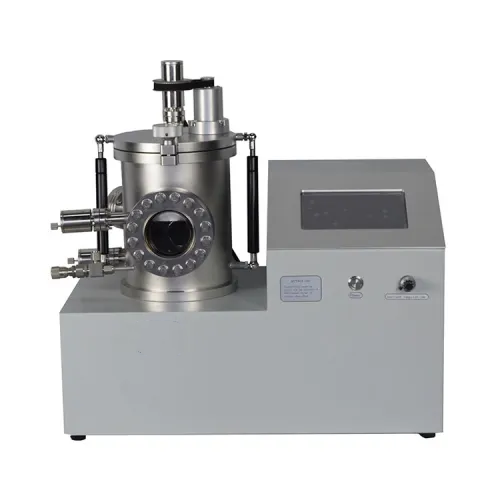

Small high vacuum thermal evaporation coater

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

The instrument is a high vacuum compact thermal evaporation coater with evaporation temperature from 200℃ to 1700℃. The tungsten wire basket is used as the evaporation source, and the evaporation source is built in at the bottom of high purity alumina crucible. The upper cover is equipped with a rotatable sample stage, which can effectively improve the uniformity of film formation. The instrument has a high-precision temperature control system and uses circulating heating method, which can stabilize the evaporation of metals and organic matter. Stainless steel high-vacuum chamber design, with high-precision molecular pump, can achieve high vacuum requirements, the high vacuum can effectively improve the efficiency and quality of the evaporation coating.
Small high vacuum thermal evaporation coater application:
This equipment is suitable for evaporation coating of most metals and certain organic material films.

Small high vacuum thermal evaporation coater technical parameters:

Small high vacuum thermal evaporation coater
Sample stage	Size	Φ65mm	Distance to evaporation source	60mm~100mm adjustable
Sample stage	Rotary speed	1-20rpm adjustable
Evaporation system	Evaporation source	Tungsten wire basket	Max temperature	1700℃
Evaporation system	Thermocouple	S type thermocouple
Vacuum chamber	Chamber size	φ170mm × 200mm	Observation Window	Quartz observation window φ70
Vacuum chamber	Chamber material	Stainless steel	Opening way	Top cover open
Vacuum system	Model	HS-GZK103-A	Pumping interface	KF40
	Molecular pump	HS-600	Exhaust interface	KF16
	Backing pump	Rotary vane pump	Vacuum measurement	Compound vacuum gauge
	Ultimate vacuum	1.0E-5Pa
	Pumping ate	Molecular pump: 600L/S rotary Rotary vane pump: 1.1L/S comprehensive pumping performance: 20 minutes vacuum up to: 1.0E-3pa
Other parameters	Supply voltage	AC220V,50Hz	Dimensions	600mm×300mm×470mm
Other parameters	Total power	1.5kw	Total weight	40kg
