Product Description

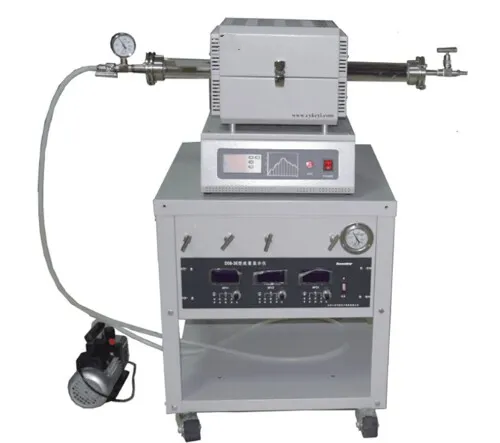

HS mini CVD tube furnace with 3 MFCS / CVD furnace system
The HS-1200CVD series furnace workstation consists of a HS-O1200 series mini tube furnace,a precision mass flow gas control station, a high vacuum station and other assembling parts. The max. working temperature of this workstation is 1200C. The ultimate vacuum rate goes to 10^-5 torr .The mass flow gas control station mixes three kinds of gas together and input the mixed gas into a fused quartz tube inside the furnace. It is competent for the experiments as CVD, Diffusion and other thermo-treatments under vacuum status and shielding gas protected.
| Product | HS-1200CVD system |
| Chamber Type | Split Chamber |
| Display | LED digital display |
| Chamber Material | Alumina Fiber |
| Heating Element | Resistance wire |
| Max Temperature | 1200°C |
| Usable Range | ≤1100°C |
| Heating Rate | ≤20°C(suggestion:10°C/min) |
| Heating Zone | Single |
| Heated length | 220mm |
| Length constant temperature | 100mm |
| Tube Material | High purity quartz |
| Tube Size | Φ50mm x700mm |
| Vacuum Seal | 1.03×10-3Pa |
| Temperature Control | PID automatic control via SCR power control |
| Accuracy | ±1°C |
| Preset curve | 10 |
| Thermocouple | K Type |
| Working Voltage | 220V 50Hz~60Hz |
| Max. Power | 1.8KW |
| Gas Channels | 3 gas channels (can be designed as your requirement) |
| Gas controller | MFCS with range of 0 -500 sccm |
| Vacuum pump | 10 Pa Rotary vacuum pump
10(-4) Pa high vacuum pump system |
