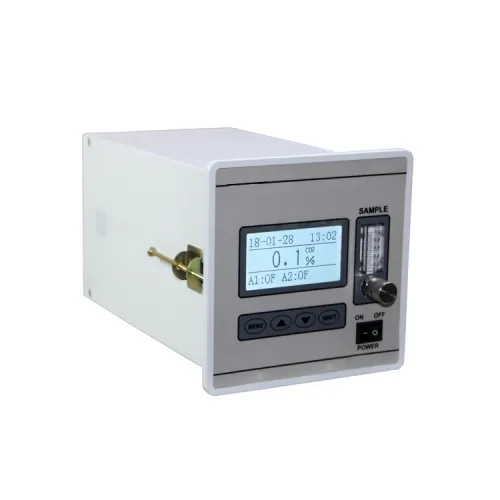

Infrared carbon dioxide analyzer is used for welding and cutting proportional gas.
Infrared carbon dioxide analyzer main features:
1.Friendly communication menu makes the operation visual and simple;
2.Long calibration interval cycle, high accuracy and reliable stability;
3.Function of storing 5000 history data allows users to look through the historic data at any time;
4.With the standard RS232（default）or RS485 communication port carried by it，the analyzer can do bidirectional communication with the computer;
5.The installation mode of frame mount makes it easy and convenient to install;
6.With power supplied at a wide range, the influence from mains fluctuation on the analyzer can be eliminated;

Infrared carbon dioxide analyzer technical parameters:

Test principle	infrared principle
Display mode	128×64 matrix dot LCD
Test range	0 ~ 30/50/99.9% CO₂
Resolution	0.1%
Accuracy	≤±1%FS
Repeatability	≤±1%
Response time	T₉₀≤15S
Analog output	4-20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm） 0-10V.DC(non-isolated output, loaded resistance higher than 10k Ohm） 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A)
Communication port	RS232（default）or RS485
Power supply	AC170 ~ 264V 50/60Hz power dissipation less than 10VA
Sample gas temperature	-10℃ ~ +50℃
Environment temperature	＜80％RH
Sampling mode	sample gas pass-in
Sample gas flow	400 ~ 600ml/min
Sample gas pressure	0.05Mpa≤entrance displayed pressure≤0.35Mpa，steady pressure environment
Background gas	CO2 and inactive gas
Appearance Size	155mm×155mm×290mm(H×W×D)
Install Hole Cut	135mm×135mm（H×W）
Serving life	＞40 months (under normal use)
Gas circuit port	Φ6 plastic pipe inlet and outlet
Install mode	frame mount
