Product Details

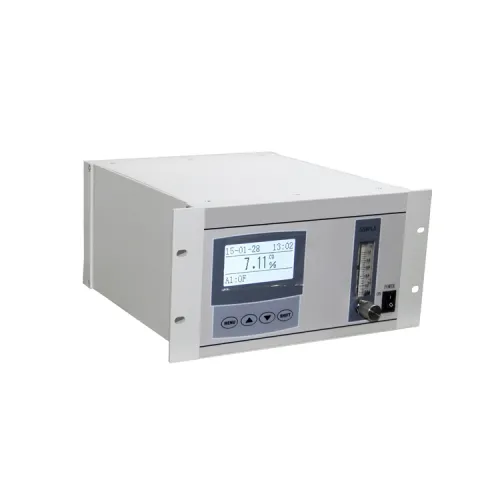

Infrared carbon monoxide analyzer is designed based on the principle that the gas has a selective absorption of infrared light. It has the characteristics of small size, fast response, high accuracy and easy to carry. It can continuously measure the concentration of CO gas in indoor and outdoor ambient air.
Infrared carbon monoxide analyzer main features:
1. Friendly communication menu makes the operation visual and simple;
2. Long calibration interval cycle, high accuracy and reliable stability;
3.It is of good selectivity to the tested gas;
4.The imported electrochemistry sensor is with relatively rare error, a rapid response speed, high accuracy and long calibration cycle for features;
5.The compensation system for temperature can eliminate the influence from environment temperature;
6.With the standard RS232（default）or RS485 communication port carried by it，the analyzer can do bidirectional communication with the computer;

Infrared carbon monoxide analyzer technical parameters:

Test principle	Infrared principle
Display mode	128×64 matrix dot LCD
Test range	0 ~ 1000ppm/10.00% CO
Accuracy	≤±1.2%FS
Repeatability	≤±1%
Error	＜±1.2%FS
Response time	T₉₀≤60S
Analog output	4-20mA.DC(non-isolated output, loaded resistance lower than 500 Ohm）. 0-10V.DC(non-isolated output, loaded resistance higher than 10k Ohm）. 1 way programmable alarm output (Dry contact type, maximum load 220VAC/2A) .
Communication port	RS232（default）or RS485
Power supply	AC170 ~ 264V 50/60Hz
Environment temperature	-10℃ ~ +40℃
Environment humidity	＜80％RH
Sampling mode	sample gas pass-in
Sample gas temperature	0 ~ 50℃
Sample gas flow	400 ~ 800ml/min
Sample gas pressure	0.05Mpa≤entrance displayed pressure≤0.35Mpa,steady pressure environment
Appearance Size	133mm×268mm×300mm（H×W×D）
Install Hole Cut	135mm×228mm（H×W）
Serving life	＞24 months (under normal use)
Gas circuit port	NPT 1/8 internal thread
Install mode	frame mount
