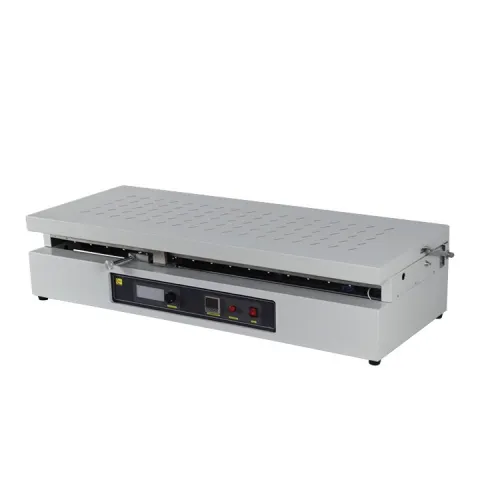

Large tape casting coater with heatable vacuum bed and doctor blade

Large tape casting coater uses a vacuum chuck and an oil-free vacuum pump to adsorb the fixed substrate, so that the substrate is free from wrinkles during the coating process, thereby making the coating more uniform and smooth, and preventing the contamination of the substrate by the oil in the vac
Products Inquiry

Product Details

Large tape casting coater uses a vacuum chuck and an oil-free vacuum pump to adsorb the fixed substrate, so that the substrate is free from wrinkles during the coating process, thereby making the coating more uniform and smooth, and preventing the contamination of the substrate by the oil in the vacuum pump.The width of the film during the working process of the Heated vacuum doctor-blade film coater can be controlled according to the width of the film forming blade. The baffle in the middle of the blade can be moved left and right. When the baffle and the side of the blade completely overlap, the film width reaches the limit.It is specially designed for coating various electrodes of cylindrical cell such as the 21700 format.

Large tape casting coater specifications:
 Power ●208V - 240V AC, single phase, 50/60Hz
●2500W
 Traverse Speed 0-80mm/sec variable
 Stroke Length 10-1000mm adjustable by using Adjustable Position Switch
 Platform

Aluminum alloy flat vacuum chuck

Vacuum chuck Dimensions: 1100mm(L) x 350mm(W) x 25mm(H)
 Protective Cover

1.This coater includes a clear acrylic protective cover.

2.A fume exhaust port is assembled with the cover on the left upper corner

3.Dimension of the port: OD 80mm, ID 68mm, Height 60mm
 Film Applicator ●Built in pushing bar for using micrometer adjustable applicator.
●300 mm width Applicator with micrometer adjustable head included making coating up to 1000mm(L) x 300mm(W)
 Heating Vacuum Bed

1.Bottom Heated vacuum chunk

2.Max. working power: 2000W

3.Max. heating temperature: 100°C

4.Precision temperature controller with +/- 1℃ accuracy.

Tip: For drying the coated Li-ion battery electrode sheets   (usually 80C is required), simply set the target temperature in the temp. controller, close the lid and wait for the slurry to be dried.
 Max. Coating Area 1000mm(L)×300mm(W)
 Machine Dimensions 1340mm(L)×580mm(W)×920mm(H) (Max Height)
 Net weight 60 kg
 Warranty One Year limited with lifetime support
