Mounting Press for Metallographic Samples Xq-2b

Basic InfoModel NO.: XQ-2BStructure: DesktopCertification: CEType: Mounting PressTrademark: HSSpecification: Mounting PressCustomized: CustomizedMaterial: SteelApplication: School, LabProduct Name: Mounting PressTransport Package: Wooden CaseOrigin: ChinaProduct Descripti

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Basic Info
Model NO.: XQ-2B
Structure: Desktop
Certification: CE
Type: Mounting Press
Trademark: HS
Specification: Mounting Press
Customized: Customized
Material: Steel
Application: School, Lab
Product Name: Mounting Press
Transport Package: Wooden Case
Origin: China

Product Description

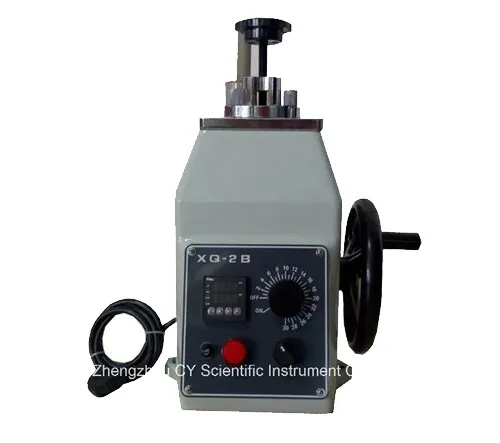

Mounting Press for Metallographic Samples XQ-2B

Description of the mounting press:
This automatic mounting press is used to encapsulate samples for metallographic preparation. One mount can be produced at one time by using the mold spacer at 22 mm diameter. One cycle time is up to 30 minutes.

Specification of the mounting press:

Power	650W
Voltage	Standard AC 208-240V 50/60Hz (For AC 110V power supply please order a 1500W voltage transformer)
Temperature Control Range	100 - 180oC
Time control Range	1 - 30 Min.
Pressure control	Hand wheel with Pressure ready sensor
Compression Mold	Standard: D22xH15 mm
Machine Dimension	250x320x430 mm
Machine Net weight	80 Lb.
Shipping Weight & Dimensions	120 lbs 40" x 30" x 28"
Optional	Please order Compression Mounting Powder (5 Lb) optional color of Black, Red, Green - EQ-HM-Powder5L at related product below
Warranty	One year limited warranty with lifetime support
