Precision Auto Lapping and Polishing Machine with Two Work Stations

Basic InfoModel NO.: HS-GP-802Processing Object: GearControlling Mode: CNCCylindrical Grinder Type: End Cylindrical GrinderCertification: CE, TUVAluminum Case: Heavy Duty CastOperation Timer: 0-99 HoursWarranty: One YearTransport Package: Wooden BoxOrigin: Zhengzhou, ChinaType:

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Basic Info
Model NO.: HS-GP-802
Processing Object: Gear
Controlling Mode: CNC
Cylindrical Grinder Type: End Cylindrical Grinder
Certification: CE, TUV
Aluminum Case: Heavy Duty Cast
Operation Timer: 0-99 Hours
Warranty: One Year
Transport Package: Wooden Box
Origin: Zhengzhou, China
Type: Tool Grinding Machine
Abrasives: Abrasive Belt
Automatic Grade: Automatic
Precision: High Precision
Condition: New
Master Plate Speed: 0-125 Rpm
Motor: High Torque DC Motor
Trademark: CY
Specification: 80 Dia. x 35 T mm
HS Code: 85141090

Product Description

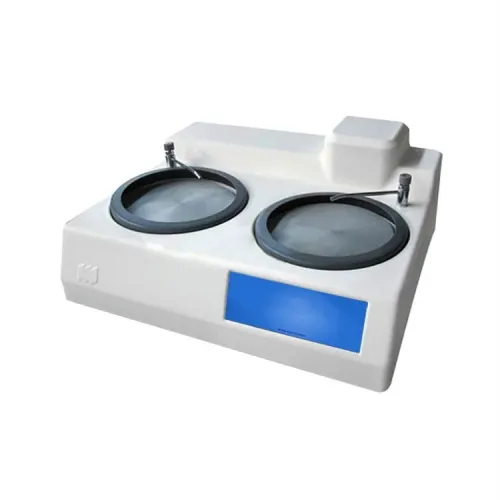

8" Precision Auto Lapping and Polishing Machine with two work stations
Introduction
This machine is equipped with 8" super flat lapping plate and can be used as a high precision lapping machine for polishing crystal components, semiconductor wafers, and ceramic substrates up to 3" in diameter. It can be used as a standard grinding and polishing machine for preparing metallographic samples as well. Combining with flat sample holder (included), the three-hole metallographic sample holder (optional), and precision thinning fixture (optional), the machine can lap and polish various samples automatically.

Specification

Power	AC 110V and 208-240V (50/60Hz) switchable for worldwide operation.
Features	One cast iron plate for lapping and one cast aluminum plate for polishing. Two rocking workstations with wafer holders and condition rings can be controlled independently for polishing 2 pcs of 3" wafers in one running.
Super-Flat 8" Lapping Plate	Flatness < 2.5 micron / inch²
Precision Rotating Shaft	Running Off < 5 micron
Aluminum Case	Heavy Duty Cast with Bright Painting
Two Work Stations Rocking Speed	8° Rocking with adjustable speed of 0 - 20 rocking / minute
Two Flat Sample Holders	80 Dia. x 35 T mm for carrying <3" diameter wafer
Two Condition Rings	95 O.D. x 88 I.D. x 32 T mm
Master Plate Speed Range	0 ~125 rpm variable with digital display
Operation Timer	0 - 99 hours
Motor	300 W high torque DC motor
Dimensions	525 L x 350 W x 325 H (mm)
Net Weight	120 lbs
Optional Parts	Automatic Slurry Feeder 2" Polishing Fixture for Precision / Automatic Thinning and Polishing Polishing Sample Holder with Three 1" Holes for Metallography 8'' high purity ceramic lapping plate
Warranty	One year limited with lifetime support
