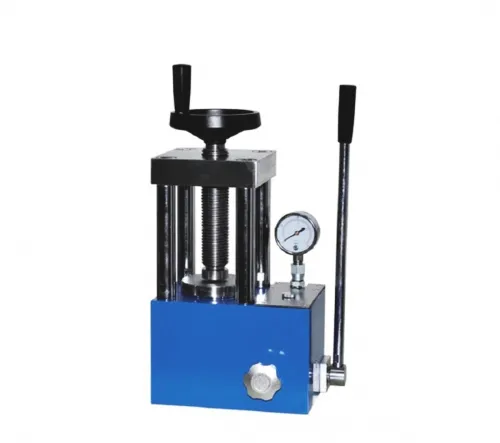

15T Compact Manual Operate Hydraulic Press HS-PC-15

Model No.HS-PC-15Pressure gauge0~15T (0~30MPa)Piston diameterΦ80mmMain structureAll in one structure, no oil link pointPressure gaugepointer pressure gauge, can replace digital
Products Inquiry

Product Details

 Model No. HS-PC-15
 Pressure gauge 0~15T (0~30MPa)
 Piston diameter Φ80mm
 Main structure All in one structure, no oil link point
 Pressure gauge pointer pressure gauge, can replace digital gauge
 Max piston distance 30mm
 Pressure stability ≤1MPa/10min
 Working stage Φ90mm
 Working space 80*130mm
 Outer dimension 245*175*390mm
 Gross Weight 40kg

15T Pressure conversion
 Real Pressure System Pressure
 1T 2MPa
 2T 4MPa
 3T 6MPa
 4T 8MPa
 5T 10MPa
 6T 12MPa
 9T 18MPa
 12T 24MPa
 15T 30MPa
