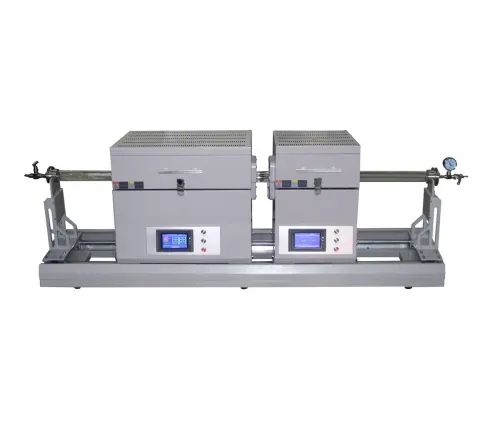

1200℃ Dual Zone Multi Function Sliding Tube Furnace for MoS2 film Preparation-HS-O1200-50IIT-XS

Features1.Fast heating rate:20°c/min2.Multi-function: CVD experiment, growth of graphene, crystalline silicon substrate coating and etc3.LCD touch screen with separately temperature controller,allows each zone separately temperature control4.30 steps programmable automatic control5.Can

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Features
1.Fast heating rate:20°c/min
2.Multi-function: CVD experiment, growth of graphene, crystalline silicon substrate coating and etc
3.LCD touch screen with separately temperature controller,allows each zone separately temperature control
4.30 steps programmable automatic control
5.Can connect with vacuum pump system and insert protective gas
6.Sliding design, can fast heating and cooling

Model	HS-O1200-50IIT-XS
Display	LCD touch screen
Chamber material	imported fiber
Heating element	imported alloy heating wire
Max.temperature	1200℃
Working temperature	≤1150℃
Heating rate	≤20°c/min
Heating zone	single
Thermal couple	K type
Temperature accuracy	±1℃
Temperature zone length	440+220mm
Thermostatic zone length	200+100mm
Tube Material	high purity quartz
Tube Size	50mm,60mm,80mm,100mm
Tube length	1000mm,1200mm
Flange connection	stainless steel flange
Control mode	PID automatic control via SCR power control
Working voltage	AC 220V 50-60Hz
Main power	4.5kw
Accessories	Quartz tube 1pc, flange 1set, plug 4pcs,O-rings 8pcs, glove 1pair, alumina crucible 1set, furnace hook 1pc, manual book
