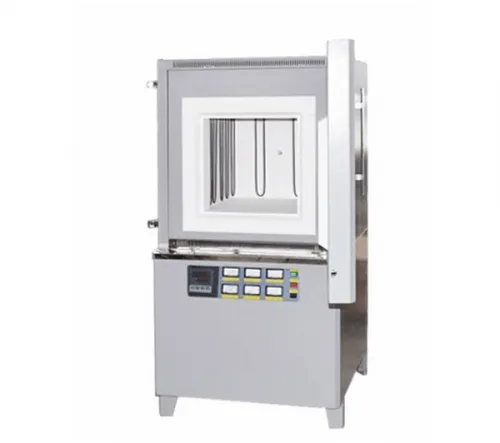

Laboratory 1700℃ High Temperature Muffle Furnace with 64L Chamber Capacity-HS-M1700-64L

Featrues1. LCD touch screen with PID Programmable control2. CE certified, quality warranty3. High quality alumina fiber, good heat preservation effect4. 30 steps Programmable and SCR accuracy temperature control5. Clear MoSi2 heating element, no color greening changing6. Low power, energ

Products Inquiry

Name * :

Tel * :

Email :

CompanyName :

Message :

Product Details

Featrues
1. LCD touch screen with PID Programmable control
2. CE certified, quality warranty
3. High quality alumina fiber, good heat preservation effect
4. 30 steps Programmable and SCR accuracy temperature control
5. Clear MoSi2 heating element, no color greening changing
6. Low power, energy conservation and environmental protection

Technical parmaters

Model	HS-M1700-64L
Chamber model	Side Door
Display	LED or 7” LCD Touch Panel
Limiting temperature	1700℃
Working temperature	≤1600℃
Heating rate	Suggestion 0~20℃/min
Temperature accuracy	±1℃
Inside chamber size	400400400(mm)
Heating element	MoSi2
Thermal couple	B Type
Temperature control	PID automatic control via SCR power control
Heating curves	30 steps programmable
Chamber material	Alumina Fiber
Rated power	9.5KW
Working voltage	AC 380V, 50-60Hz
Packing	PLY wood box
Accessories	Door stopper 1 pc, glove 1pair, crucible tongs 1pc, manual book
